Telephone Jack (PCB Mount)

Specification

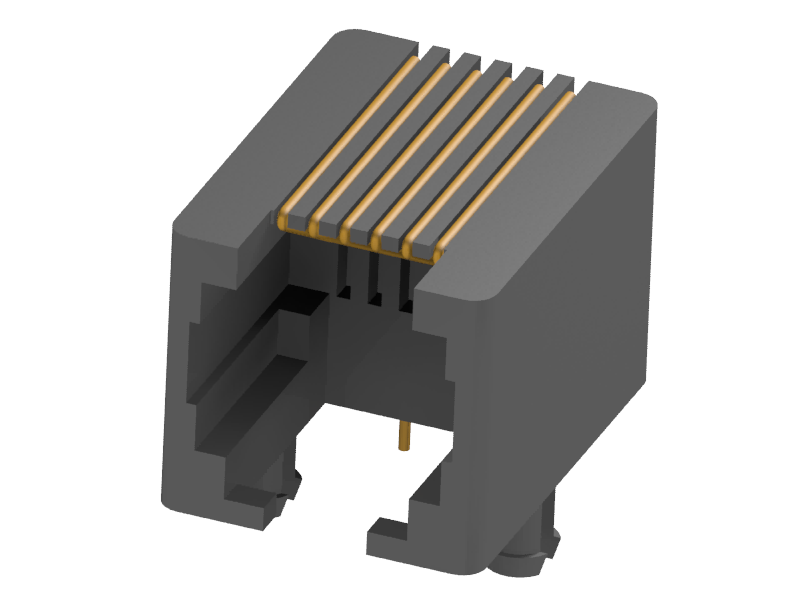

Measurement7630 Series Low Profile PCB Mount Telephone Jack Side Entry Type
Circuits-
Current Rating1.5A AC DC
Voltage Rating125V AC DC
Temperature rating:-25℃~+105℃
Contact resistance20mΩ max.
Insulation resistance1000MΩ min.
Withstanding voltage1000V AC/min.

Standards

Product Details

  • 7630 Series Low Profile PCB Mount Telephone Jack Side Entry Type
  • 7630 Series Low Profile PCB Mount Telephone Jack Side Entry Type
Product7630
Circuits-
MaterialPolyester UL94V-0/Phosphor Bronze
Material Options-
Color Options-

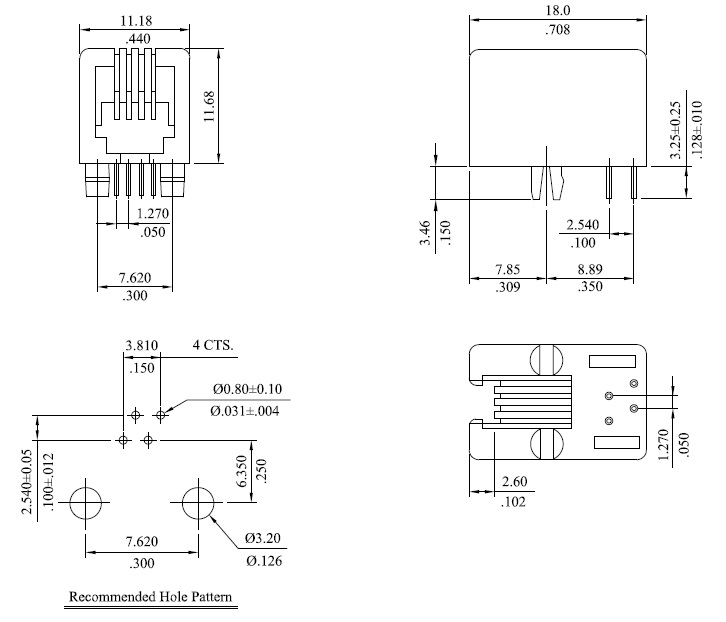

FormulaP/N 7630-0404**
Options-
Other Informaton-
Product7630
Circuits-
MaterialPolyester UL94V-0/Phosphor Bronze
Material Options-
Color Options-
FormulaP/N 7630-0606**
Options-
Other Informaton-
