Networking RJ Series (PCB Mount)

Specification

Measurement1.27mm(.050")*2.54mm(.100")
Circuits-
Current Rating1.5A AC DC
Voltage Rating125V AC DC
Temperature rating:-25℃~+105℃
Contact resistance20mΩ max.
Insulation resistance1000MΩ min.
Withstanding voltage1000V AC/min.

Standards

Product Details

  • 7605 Series PCB Ganged Jack
  • 7605 Series PCB Ganged Jack
Product7605
Circuits-
MaterialPolyester UL94V-0/Phosphor Bronze
Material Options-
Color Options-

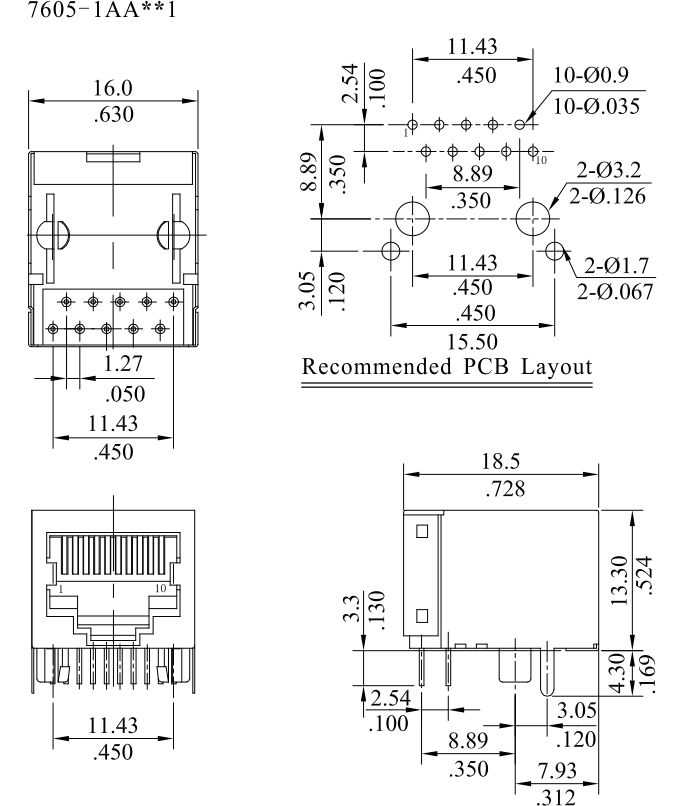

FormulaP/N 7605-1AA**1
Options-
Other Informaton-
Product7605
Circuits-
MaterialPolyester UL94V-0/Phosphor Bronze
Material Options-
Color Options-

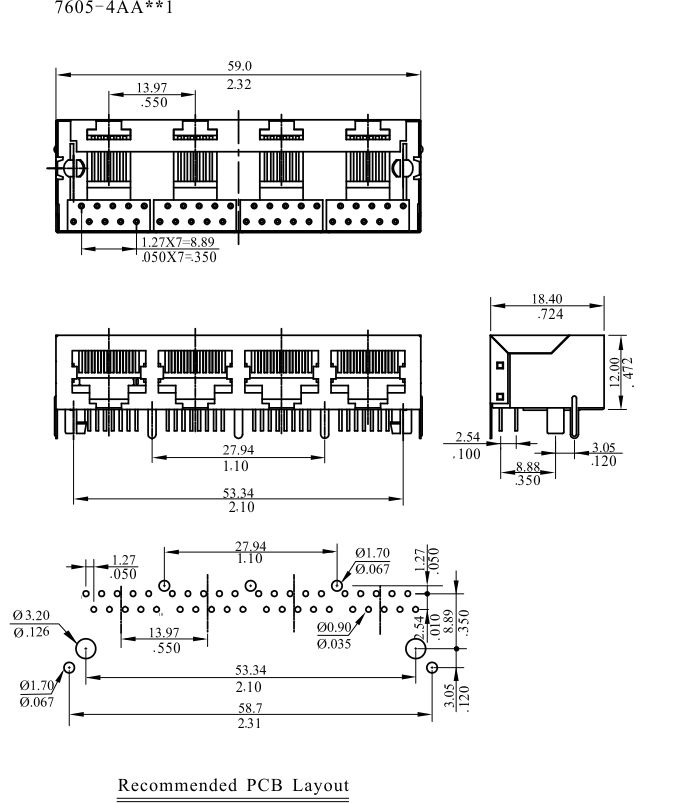

FormulaP/N 7605-4AA**1
Options-
Other Informaton-
