5.00mm(.197″) Wire to Board Connector

//5.00mm(.197″) Wire to Board Connector

5.00mm(.197″) Wire to Board Connector

Specification

Measurement5.00mm (.197")
Circuits1~7 circuits
Current Rating7A AC DC
Voltage Rating250V AC DC
Temperature rating:-25℃~+105℃
Contact resistance20mΩ max.
Insulation resistance1000MΩ min.
Withstanding voltage1500V AC/min.

Standards

Product Details

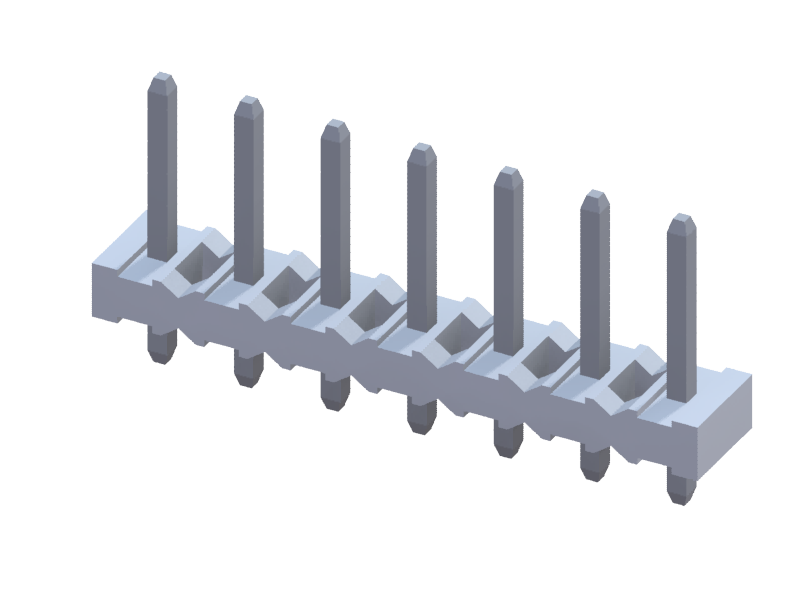

  • 5016 Series 5.00mm (.197") Single Row Breakaway Header
  • 5016 Series 5.00mm (.197") Single Row Breakaway Header
  • 5016 Series 5.00mm (.197") Single Row Breakaway Header
Product5016P
Circuits1~7 circuits
MaterialNylon66 UL94V-0/Copper Alloy
Material Options-
Color Options-

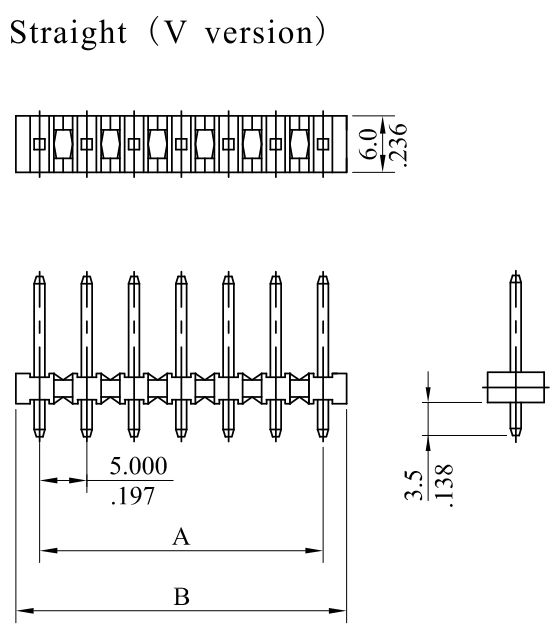

FormulaP/N 5016P**V000
Options-
Other Informaton-
Product5016P
Circuits1~7 circuits
MaterialNylon66 UL94V-0/Copper Alloy
Material Options-
Color Options-
FormulaP/N 5016P**H000
Options-
Other Informaton-
Product5016P
Circuits1~7 circuits
MaterialNylon66 UL94V-0/Copper Alloy
Material Options-
Color Options-
FormulaP/N 5016P**R000
Options-
Other Informaton-
