1.00mm(.039″)FFC/FPC Connector

Specification

Measurement1.00mm (.039")
Circuits4~40 circuits
Current Rating0.5A AC DC
Voltage Rating30V AC DC
Temperature rating: -25℃~+85℃
Contact resistance30mΩ max.
Insulation resistance500MΩ min.
Withstanding voltage500V AC/min.

Standards

Product Details

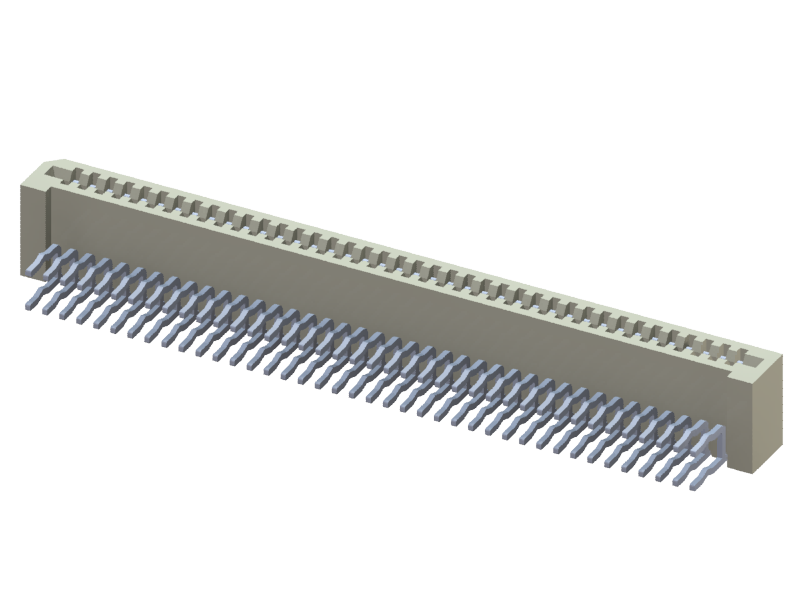

  • 1007 Series 1.00mm(.039")Non-ZIF Top Entry FFC/FPC Connector
  • 1007 Series 1.00mm(.039")Non-ZIF Side Entry FFC/FPC Connector
Product1007S
Circuits4~40 circuits
MaterialThermoplatic UL94V-0/Phosphor Bronze
Material Options-
Color Options-
FormulaP/N 1007S**VT*A
Options-
Other Informaton-
Product1007S
Circuits4~40 circuits
MaterialThermoplatic UL94V-0/Phosphor Bronze
Material Options-
Color Options-
FormulaP/N 1007S**HT*A
Options-
Other Informaton-
