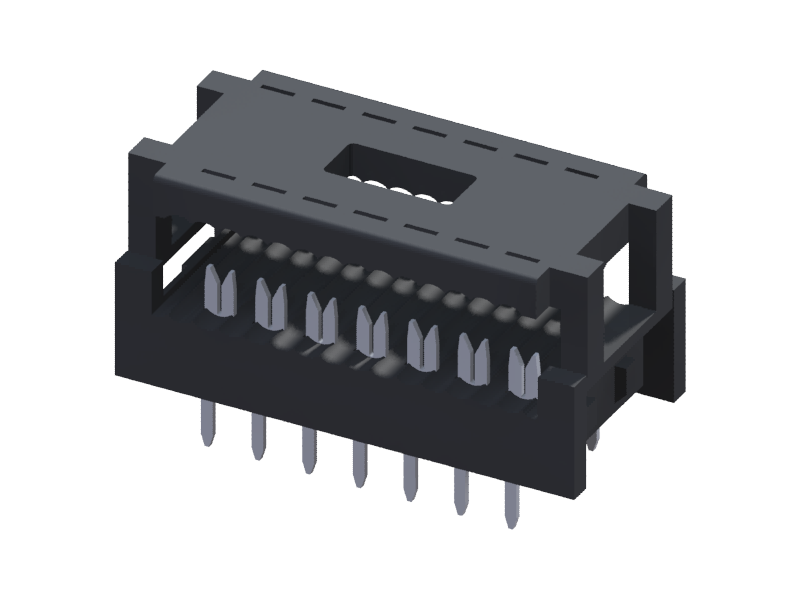

2.54mm*2.54mm(.100″*.100″)Slim In-Line Connector For 1.27mm(.050″)Center Flat Cable

//2.54mm*2.54mm(.100″*.100″)Slim In-Line Connector For 1.27mm(.050″)Center Flat Cable

2.54mm*2.54mm(.100″*.100″)Slim In-Line Connector For 1.27mm(.050″)Center Flat Cable

Specification

Measurement2.54mm (.100")
Circuits10,14,16,18,20,24,26,28,32,34,36,40 circuits
Current Rating3A AC DC
Voltage Rating250V AC DC
Temperature rating: -25℃~+105℃
Contact resistance20mΩ max.
Insulation resistance1000MΩ min.
Withstanding voltage500V AC/min.

Standards

Product Details

Product2615S
Circuits10,14,16,18,20,24,26,28,32,34,36,40 circuits
MaterialThermoplastic UL94V-0/Brass
Material Options-
Color Options-
FormulaP/N 2615S***001
Options-
Other Informaton-
