2.00mm(.079″)IDC Connector

Specification

Measurement2.00mm (.079")
Circuits6~64 circuits
Current Rating1A AC DC
Voltage Rating250V AC DC
Temperature rating: -25℃~+105℃
Contact resistance30mΩ max.
Insulation resistance1000MΩ min.
Withstanding voltage500V AC/min.

Standards

Product Details

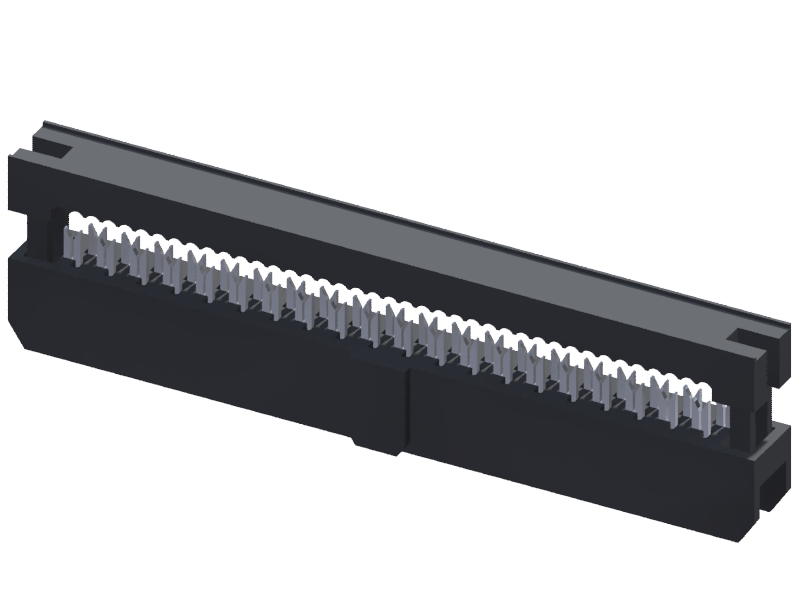

  • 2045 Series 2.00mm(.079")Socket
Product2045S
Circuits6~64 circuits
MaterialThermoplastic UL94V-0/Phosphor Bronze
Material Options-
Color Options-
FormulaP/N 2045S**U000
Options-
Other InformatonMates with 2046P
