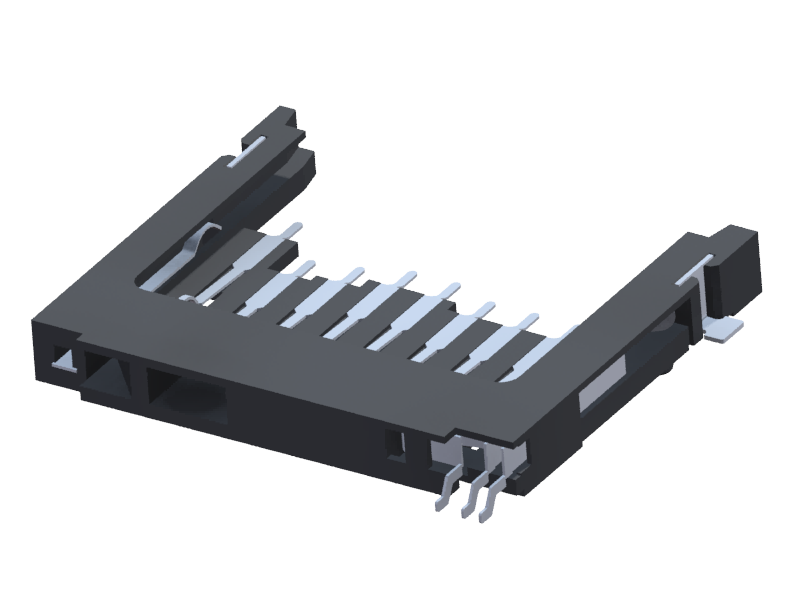

Secure Digital Memory Card Connector

Specification

Measurement 2.50mm (.098")
Circuits 9 circuits
Current Rating 0.5A AC DC
Voltage Rating 250V AC DC
Temperature rating: -25℃~+85℃
Contact resistance 40mΩ max.
Insulation resistance 1000MΩ min.
Withstanding voltage 500V AC/min.

Standards

Product Details

  • 1286 Secure Digital Memory Card Connector
  • 1286 Secure Digital Memory Card Connector
Product 1286
Circuits 9 circuits
Material High temperature thermoplastic,UL94V-0/Copper Alloy
Material Options -
Color Options -
Formula P/N 1286000****
Options -
Other Informaton Normal type
Product 1286
Circuits 9 circuits
Material High temperature thermoplastic,UL94V-0/Copper Alloy
Material Options -
Color Options -
Formula P/N 1286000****
Options -
Other Informaton Short type
