USB Connector

Specification

Measurement 0.50mm(.020")
Circuits 24 circuits
Current Rating 0.25A AC
Voltage Rating 30V AC
Temperature rating: -40℃~+80℃
Contact resistance 40mΩ max.
Insulation resistance 100MΩ min.
Withstanding voltage 100V AC/min.

Standards

Product Details

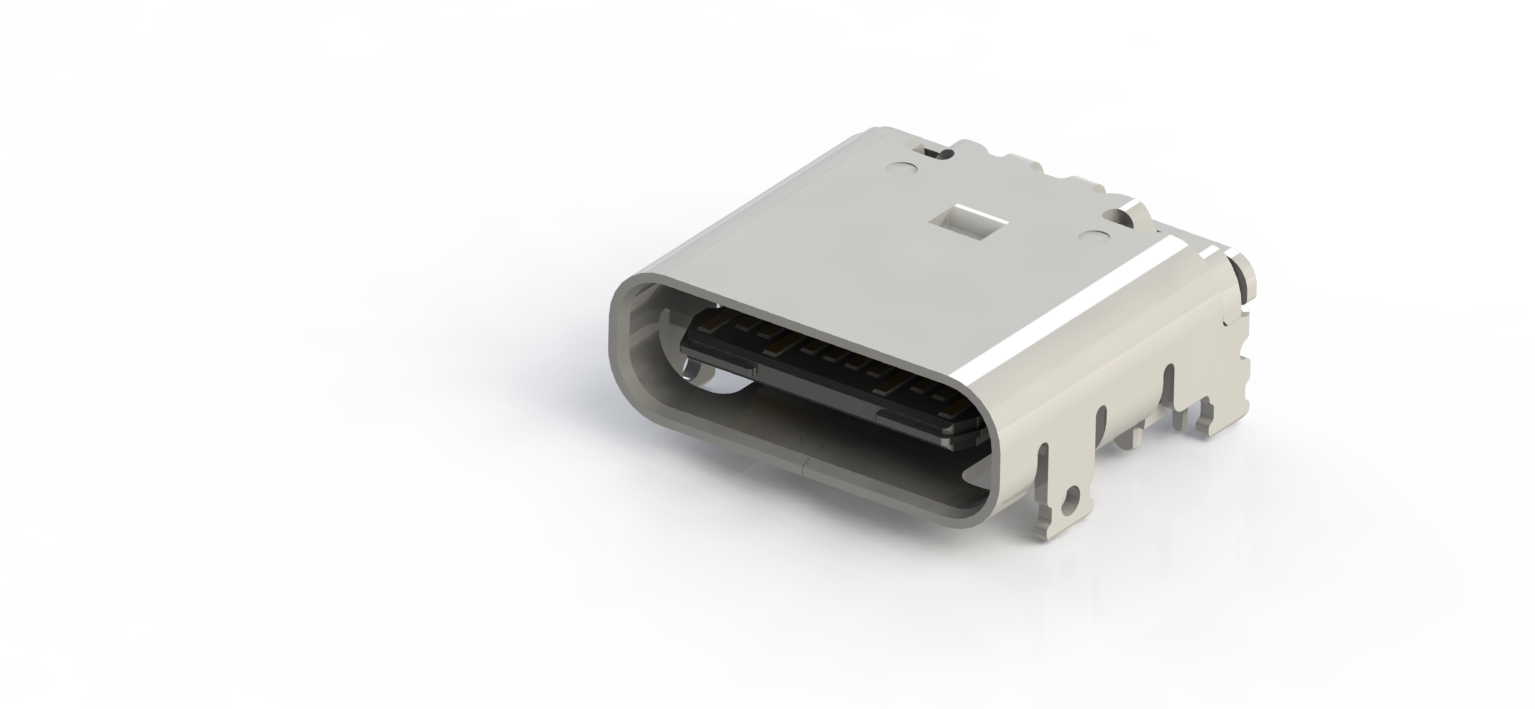

  • 2079 Series USB Type C Receptacle
  • 2079 Series USB Type C Receptacle
  • 2079 Series USB Type C Receptacle
Product 2079C
Circuits 24 circuits
Material Thermoplastic UL94V-0/Copper Alloy
Material Options -
Color Options -

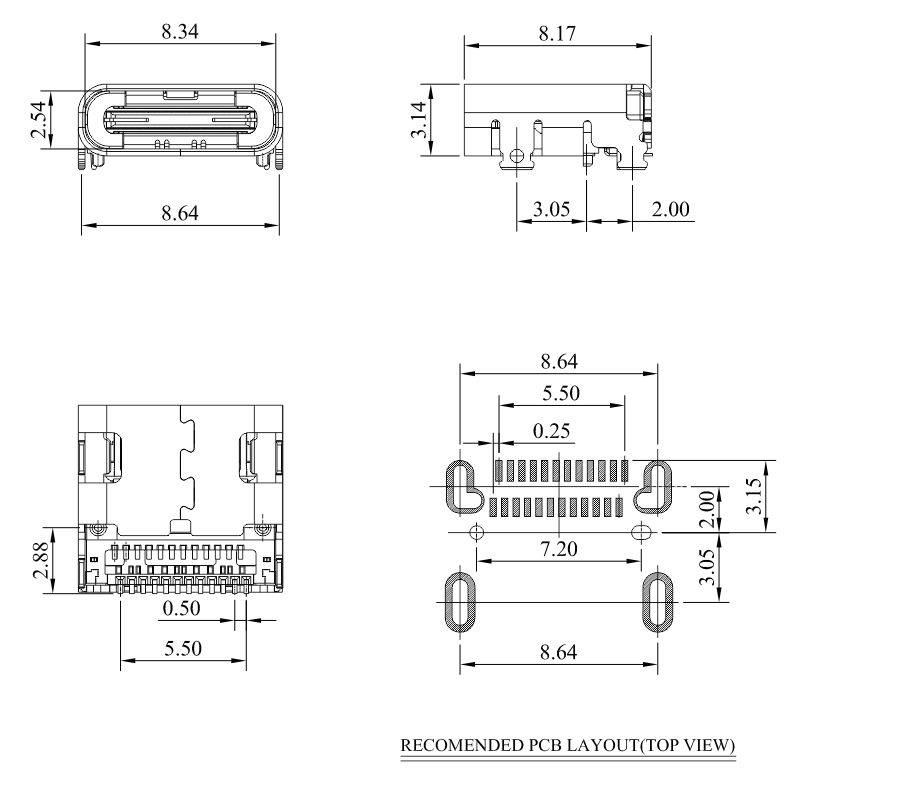

Formula P/N 2079SCB*1B1
Options -
Other Informaton Top mount,Dual-Row SMT
Product 2079C
Circuits 24 circuits
Material Thermoplastic UL94V-0/Copper Alloy
Material Options -
Color Options -
Formula P/N 2079SCC*1B2
Options -
Other Informaton Mid-mount,Hybrid(SMT+TH)
Product 2079C
Circuits 24 circuits
Material Thermoplastic UL94V-0/Copper Alloy
Material Options -
Color Options -
Formula P/N 2079SCC*1B3
Options -
Other Informaton Top mount,Hybrid(SMT+TH)
