Networking RJ Series (PCB Mount)

Networking RJ Series (PCB Mount)

Specification

Measurement 1.27mm(.050")*2.54mm(.100")
Circuits -
Current Rating 1.5A AC DC
Voltage Rating 125V AC DC
Temperature rating: -40℃~+85℃
Contact resistance 20mΩ max.
Insulation resistance 1000MΩ min.
Withstanding voltage 1000V AC/min.

Standards

Product Details

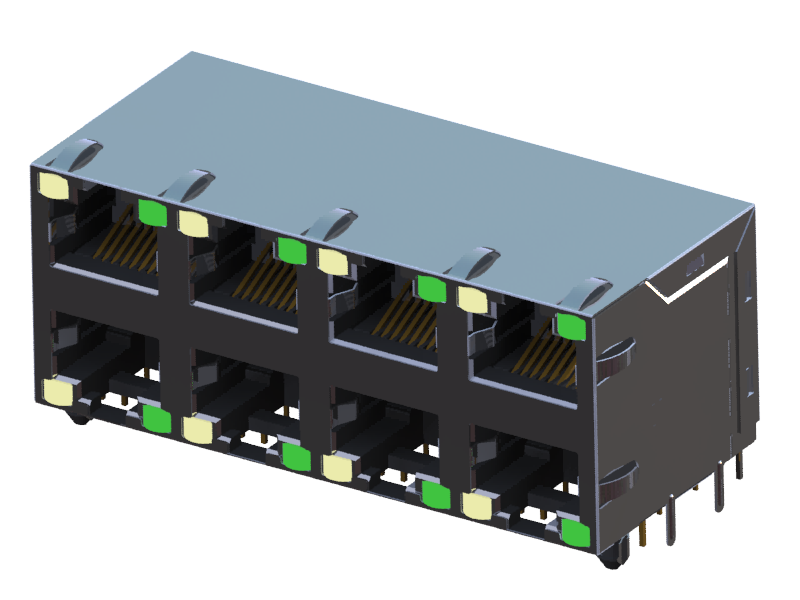

  • RJ45 Series
Product 76D0
Circuits -
Material High Performance Thermoplastic UL94V-0/High Performance Copper Alloy
Material Options -
Color Options -
Formula P/N 76D0-5400*H
Options -
Other Informaton -
