Micro USB Connector

Specification

Measurement0.65mm(.026")
Circuits5 circuits
Current Rating1.8A max
Voltage Rating30V AC
Temperature rating:-25℃~+85℃
Contact resistance30mΩ max.
Insulation resistance100MΩ min.
Withstanding voltage100V AC/min.

Standards

Product Details

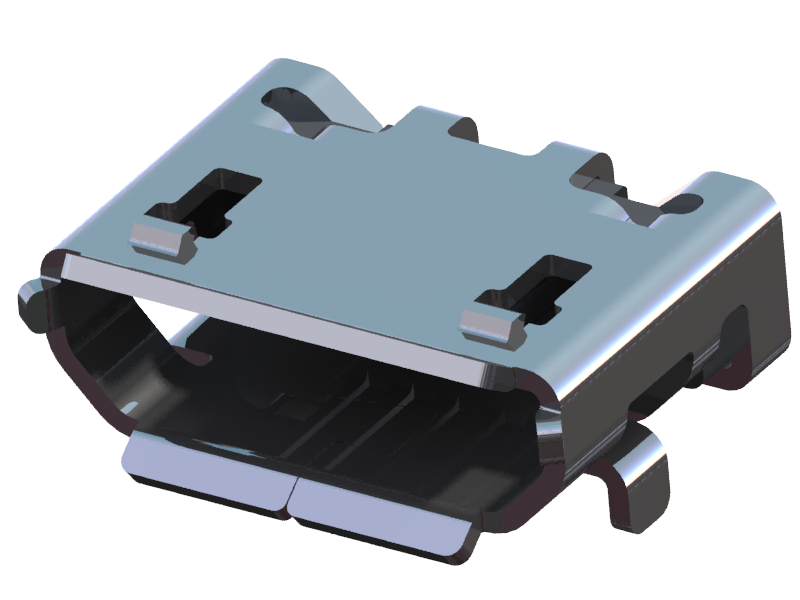

  • Micro USB B Type SMT Type Receptacle

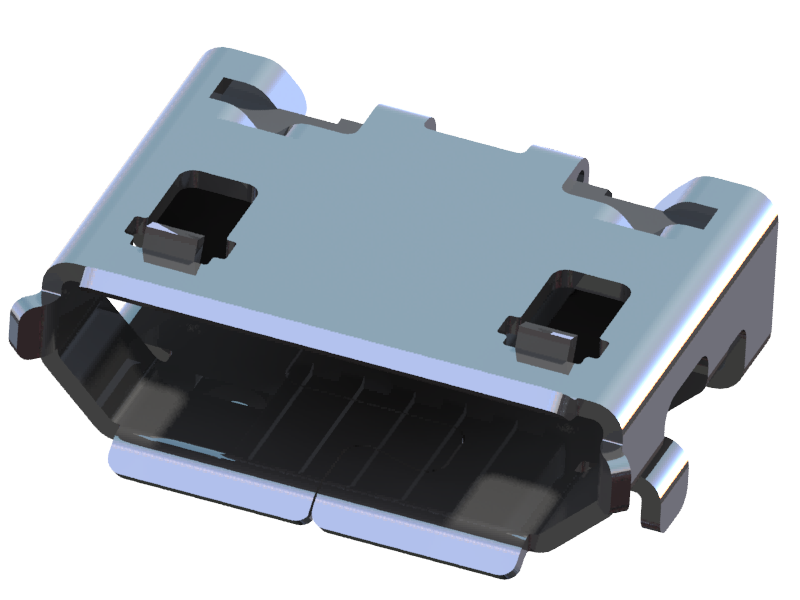

  • Micro USB B Type SMT Type Receptacle
Product0650
Circuits5 circuits
MaterialHigh Temperature Thermoplastic UL94V-0/Copper alloy
Material Options-
Color Options-
FormulaP/N 0650SBBD300
Options-
Other Informaton-
Product0650
Circuits5 circuits
MaterialHigh Temperature Thermoplastic UL94V-0/Copper alloy
Material Options-
Color Options-
FormulaP/N 0650SBAD300
Options-
Other Informaton-
