D-Sub miniature Connector(D-SUB)

Specification

Measurement2.29mm(.090")*1.98mm(.078")
Circuits15,26,44,62 circuits
Current Rating3A AC DC
Voltage Rating250V AC DC
Temperature rating:-25℃~+105℃
Contact resistance20mΩ max.
Insulation resistance5000MΩ min.
Withstanding voltage1000V AC/min.

Standards

Product Details

  • DHPL Series PCB Mount High Density D-Sub Plug
  • DHSL Series PCB Mount High Density D-Sub Receptacle
ProductDHPL
Circuits15,26,44,62 circuits
MaterialPolyester UL94V-0/Copper Alloy
Material Options-
Color Options-
FormulaP/N DHPL-***RL2
Options-
Other InformatonMates with DHSL

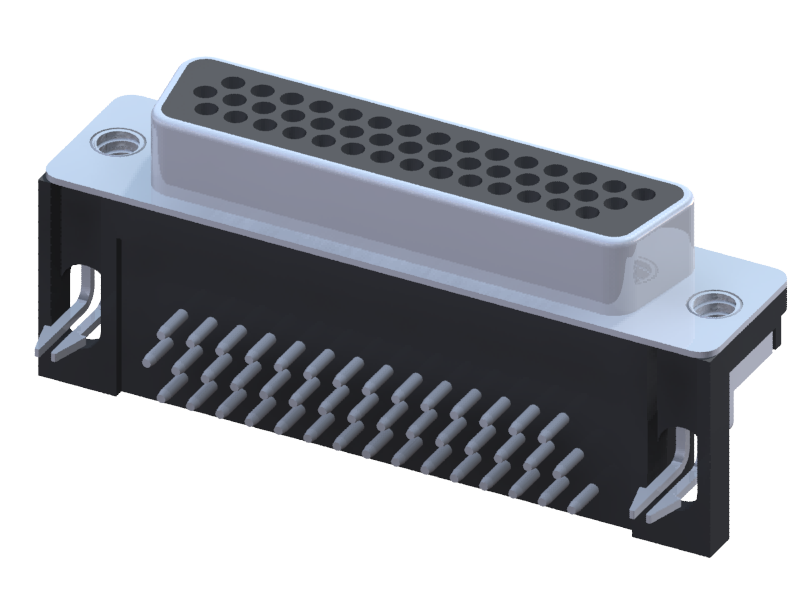

ProductDHSL
Circuits15,26,44,62 circuits
MaterialPolyester UL94V-0/Copper Alloy
Material Options-
Color Options-
FormulaP/N DHSL-***RL2
Options-
Other InformatonMates with DHPL
