D-Sub miniature Connector(D-SUB)

Specification

Measurement2.770mm(.109")*2.840mm(.112")
Circuits09,15,25,37 circuits
Current Rating3A AC DC
Voltage Rating250V AC DC
Temperature rating:-25℃~+105℃
Contact resistance20mΩ max.
Insulation resistance5000MΩ min.
Withstanding voltage1000V AC/min.

Standards

Product Details

  • DPT Series Top Entry PCB Mount D-Sub Plug

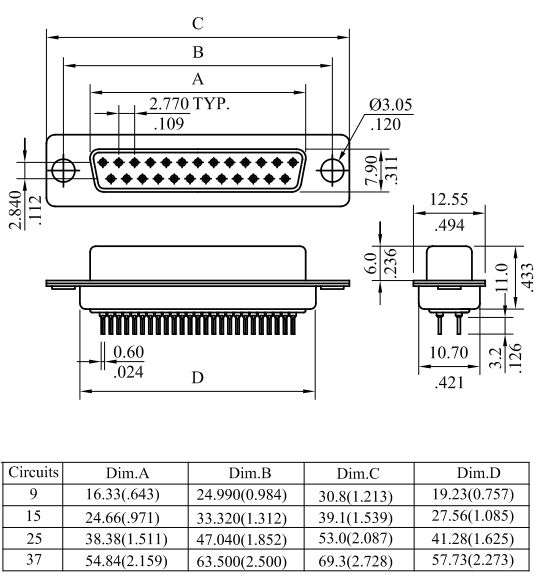

  • DST Series Top Entry PCB Mount D-Sub Receptacle
ProductDPT
Circuits09,15,25,37 circuits
MaterialPolyester UL94V-0/Copper Alloy
Material Options-
Color Options-
FormulaP/N D*-**PT****
Options-
Other InformatonMates with DST
ProductDST
Circuits09,15,25,37 circuits
MaterialPolyester UL94V-0/Copper Alloy
Material Options-
Color Options-
FormulaP/N D*-**ST****
Options-
Other InformatonMates with DPT
