D-Sub miniature Connector(D-SUB)

Specification

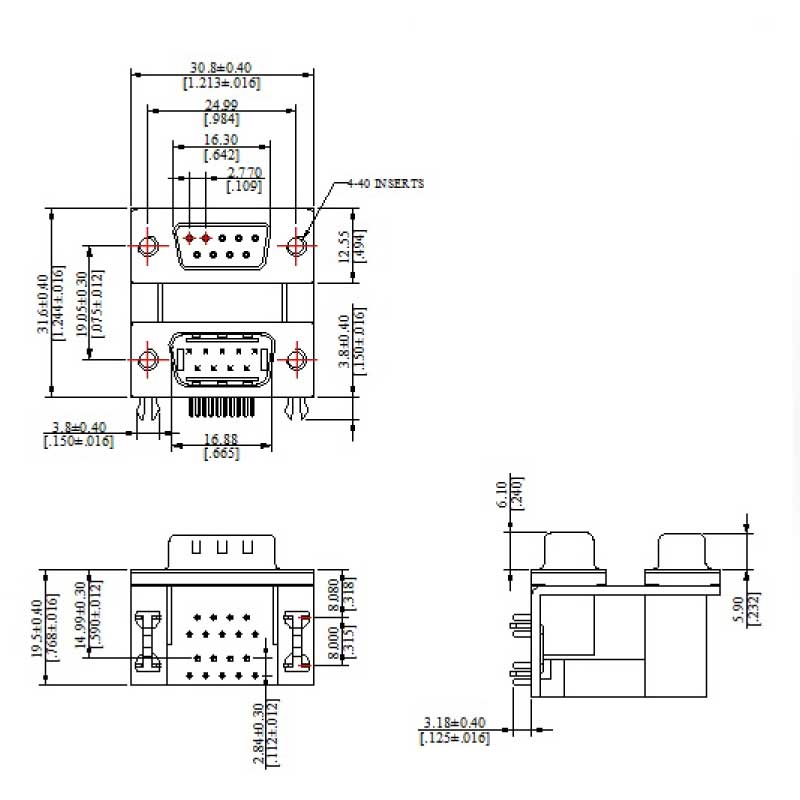

Measurement2.770mm(.109")*2.840mm(.112")
Circuits9 circuits
Current Rating3A AC DC
Voltage Rating250V AC DC
Temperature rating: -25℃~105℃
Contact resistance20mΩ max.
Insulation resistance1000MΩ min.
Withstanding voltage1000V AC/min.

Standards

Product Details

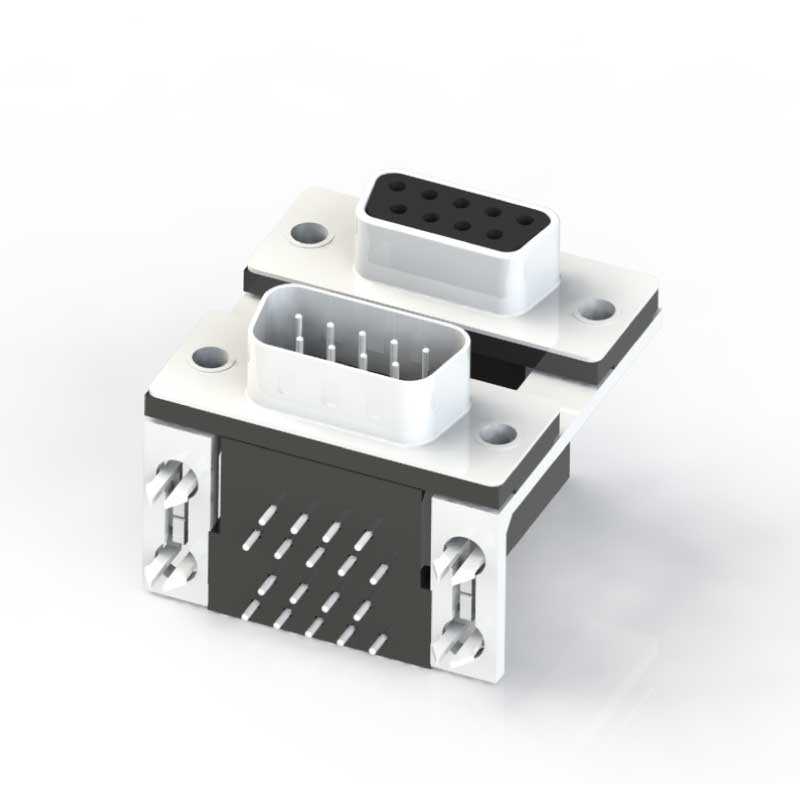

  • DKY Series 8.10mm(.319")Foot Print Metal Shell R/A Stacked D-SUB
ProductDKY
Circuits9 circuits
MaterialPolyester UL94V-0/Copper Alloy
Material Options-
Color Options-
FormulaP/N DE-09KYFRL2
Options-
Other InformatonMates with DJY
