6.20mm (.244″) Wire to Wire Connector

Specification

Measurement6.20mm (.244")
Circuits1~15 circuits
Current Rating7A AC DC
Voltage Rating250V AC DC
Temperature rating:-25℃~+105℃
Contact resistance20mΩ max.
Insulation resistance1000MΩ min.
Withstanding voltage1500V AC/min.

Standards

Product Details

  • 6700 Series 6.20mm (.244")mm Housing
  • 6700 Series 6.20mm (.244")mm Housing

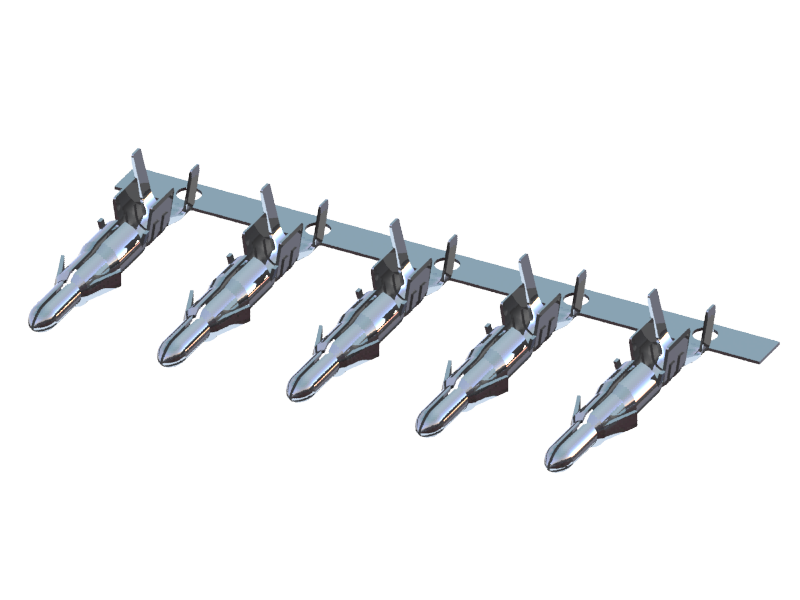

  • 6703T Crimping Terminal
  • 6713T Crimping Terminal
  • 6704T Crimping Terminal
  • 6714T Crimping Terminal
Product6700S
Circuits1~15 circuits
MaterialThermoplastic UL94V-2
Material Options-
Color Options-
FormulaP/N 6700S**F000
Options-
Other InformatonMates with 6704/6714 terminal
Product6700S
Circuits1~15 circuits
MaterialThermoplastic UL94V-2
Material Options-
Color Options-
FormulaP/N 6700S**M000
Options-
Other InformatonMates with 6703/6713 terminal

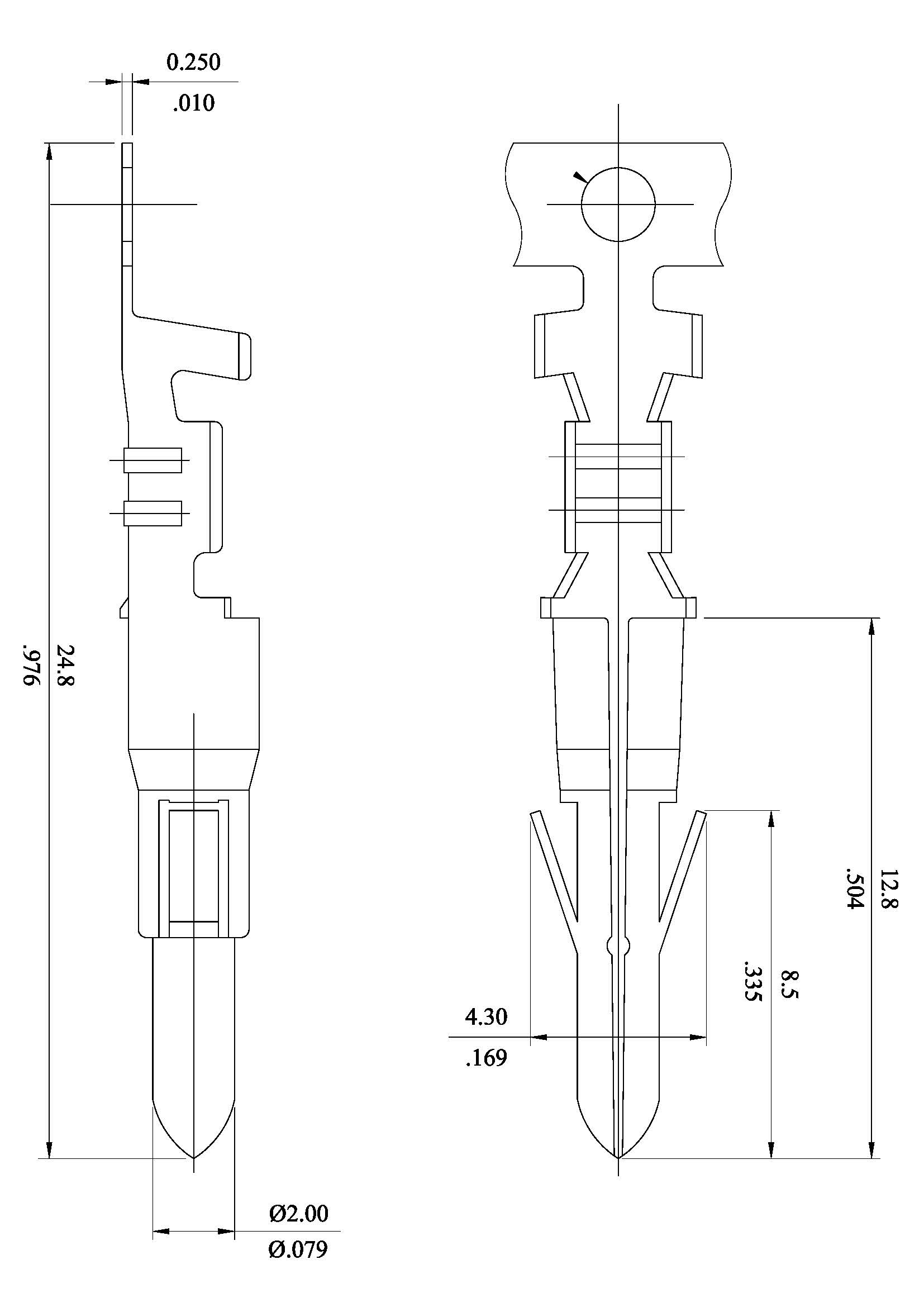

Product6703T
Circuits-
MaterialBrass
Material Options-
Color Options-
FormulaP/N 6703TCB0000
Options-
Other InformatonMates with 6700S AWG 18~22 Tin Plated 3.5K Pcs/Reel
Product6713T
Circuits-
MaterialBrass
Material Options-
Color Options-
FormulaP/N 6713TCB0000
Options-
Other InformatonMates with 6700S AWG 14~20 Tin Plated 3.5K Pcs/Reel
Product6704T
Circuits-
MaterialBrass
Material Options-
Color Options-
FormulaP/N 6704TCB0000
Options-
Other InformatonMates with 6700S AWG 18~22 Tin Plated 3.5K Pcs/Reel
Product6714T
Circuits-
MaterialBrass
Material Options-
Color Options-
FormulaP/N 6714TCB0000
Options-
Other InformatonMates with 6700S AWG 14~20 Tin Plated 3.5K Pcs/Reel
