5.08mm (.200″) Wire to Wire Connector

5.08mm (.200″) Wire to Wire Connector

Specification

Measurement 5.08mm (.200")
Circuits 4 circuits
Current Rating 5A AC DC
Voltage Rating 250V AC DC
Temperature rating: -25℃~+105℃
Contact resistance 20mΩ max.
Insulation resistance 1000MΩ min.
Withstanding voltage 1500V AC/min.

Standards

Product Details

  • 5200 Series 5.08mm (.200") Housing
  • 5200 Series 5.08mm (.200") Housing
  • 5213T Crimping Terminal
  • 5214T Crimping Terminal
Product 5200S
Circuits 4 circuits
Material Thermoplastic UL94V-2
Material Options -
Color Options -

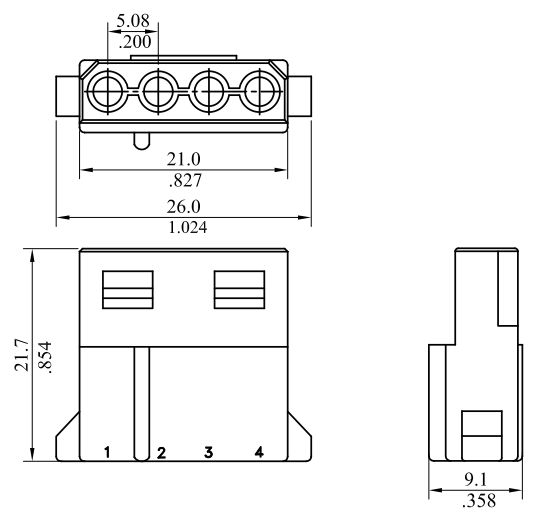

Formula P/N 5200S04F000
Options -
Other Informaton Mates with 5214 terminal
Product 5200S
Circuits 4 circuits
Material Thermoplastic UL94V-2
Material Options -
Color Options -
Formula P/N 5200S04M000
Options -
Other Informaton Mates with 5213 terminal
Product 5213T
Circuits -
Material Brass
Material Options -
Color Options -
Formula P/N 5213TPB0SH0
Options -
Other Informaton Mates with 5200S
Product 5214T
Circuits -
Material Brass
Material Options -
Color Options -
Formula P/N 5214TPB0SH0
Options -
Other Informaton Mates with 5200S AWG 16~22 Tin Plated 5K Pcs/Reel
