4.50mm (.177″) Wire to Wire Connector

4.50mm (.177″) Wire to Wire Connector

Specification

Measurement 4.50mm (.177″)
Circuits 2~12 circuits
Current Rating 7A AC DC
Voltage Rating 250V AC DC
Temperature rating: -25℃~+105℃
Contact resistance 20mΩ max.
Insulation resistance 1000MΩ min.
Withstanding voltage 1500V AC/min.

Standards

Product Details

  • 5300 Series 4.50mm (.177") Housing
  • 5300 Series 4.50mm (.177") Housing

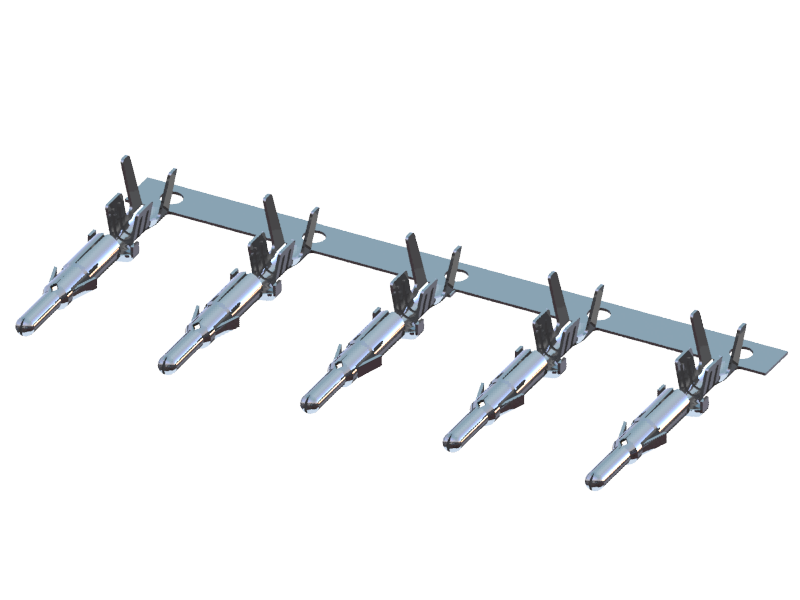

  • 5311T Crimping Terminal
  • 5311T Crimping Terminal
Product 5300S
Circuits 2~12 circuits
Material Thermoplastic UL94V-0
Material Options -
Color Options -
Formula P/N 5300S**F000
Options -
Other Informaton Mates with 5312 terminal
Product 5300S
Circuits 2~12 circuits
Material Thermoplastic UL94V-0
Material Options -
Color Options -
Formula P/N 5300S**M000
Options -
Other Informaton Mates with 5311 terminal
Product 5311T
Circuits -
Material Phosphor Bronze
Material Options -
Color Options -
Formula P/N 5311TPB0000
Options -
Other Informaton Mates with 5300S AWG 18~22 Tin Plated 3.5K Pcs/Reel
Product 5312T
Circuits -
Material Phosphor Bronze
Material Options -
Color Options -
Formula P/N 5312TPB0000
Options -
Other Informaton Mates with 5300S AWG 18~22 Tin Plated 3.5K Pcs/Reel
