2.54mm (.100″) Wire to Board Connector

Specification

Measurement2.54mm (.100")
Circuits4~80 circuits
Current Rating3A AC DC
Voltage Rating250V AC DC
Temperature rating:-25℃~+85℃
Contact resistance20mΩ max.
Insulation resistance1000MΩ min.
Withstanding voltage800V AC/min.

Standards

Product Details

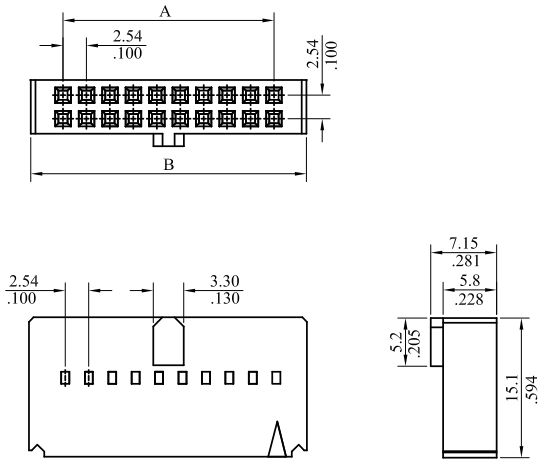

  • 2871 Series 2.54mm (.100") Dual Row Housing
  • 2871T Crimping Terminal
Product2871S
Circuits4~80 circuits
MaterialPolyester UL94V-0
Material Options-
Color Options-
FormulaP/N 2871S**000P
Options-
Other InformatonMates with 2871 terminal
Product2871T
Circuits-
MaterialPhosphor Bronze
Material Options-
Color Options-
FormulaP/N 2871T***F00
Options-
Other InformatonMates with 2871S AWG 24~28 Tin Plated/Gold Plated 15K Pcs/Reel
