2.54mm (.100″) Wire to Board Connector

Specification

Measurement2.54mm (.100")
Circuits4~72 circuits
Current Rating3A AC DC
Voltage Rating250V AC DC
Temperature rating:-25℃~+105℃
Contact resistance20mΩ max.
Insulation resistance1000MΩ min.
Withstanding voltage1000V AC/min.

Standards

Product Details

  • 2665 Series 2.54mm (.100") Single Row Housing
  • 2655 Series 2.54mm (.100") Dual Row Housing
  • 2653T Crimping Terminal
  • 2663T Crimping Terminal

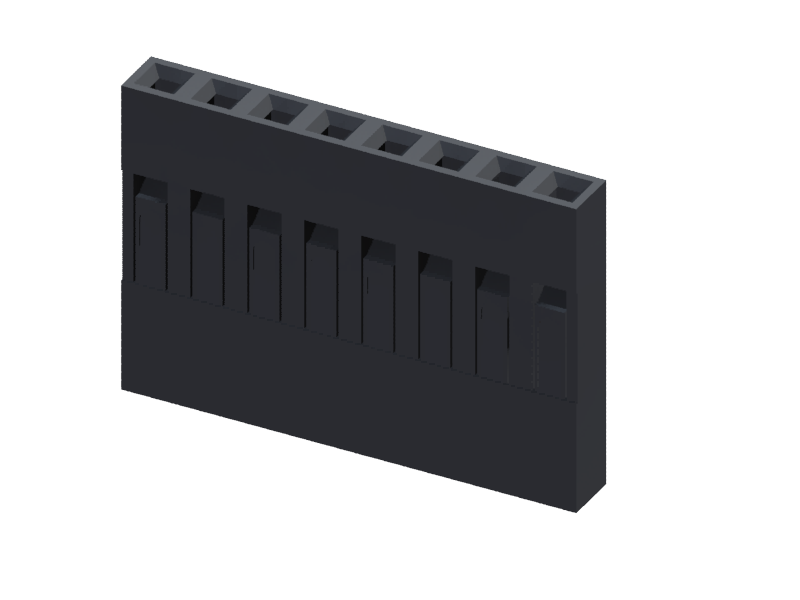

Product2665S
Circuits2~40 circuits
MaterialThermoplastic UL94V-0
Material Options-
Color Options-
FormulaP/N 2665S**0000
Options-
Other InformatonMates with 2653&2663 terminal

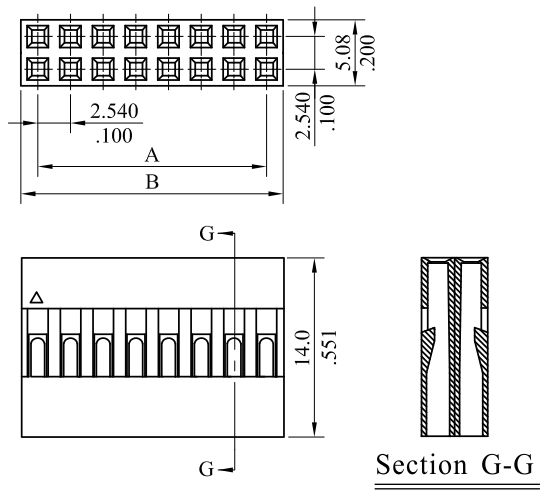

Product2655S
Circuits4~72 circuits
MaterialThermoplastic UL94V-0
Material Options-
Color Options-
FormulaP/N 2655S**0000
Options-
Other InformatonMates with 2653&2663 terminal
Product2653T
Circuits-
MaterialPhosphor Bronze
Material Options-
Color Options-
FormulaP/N 2653TPB0000
Options-
Other InformatonMates with 2663T AWG 22~28 Tin Plated 8K Pcs/Reel
Product2663T
Circuits-
MaterialCopper Alloy
Material Options-
Color Options-
FormulaP/N 2663T*B0000
Options-
Other InformatonMates with 2653T AWG 22~28 Tin Plated 10K Pcs/Reel
