2.54mm (.100″) Board to Board Connector

Specification

Measurement2.54mm (.100")
Circuits2~20 circuits
Current Rating3A AC DC
Voltage Rating250V AC DC
Temperature rating:-25℃~+105℃
Contact resistance20mΩ max.
Insulation resistance1000MΩ min.
Withstanding voltage500V AC/min.

Standards

Product Details

  • 2405 Series 2.54mm (.100") PCB Socket
  • 2405 Series 2.54mm (.100") PCB Socket
  • 2405 Series 2.54mm (.100") PCB Socket
Product2405S
Circuits2~20 circuits
MaterialThermoplastic UL94V-0/Brass
Material Options-
Color Options-

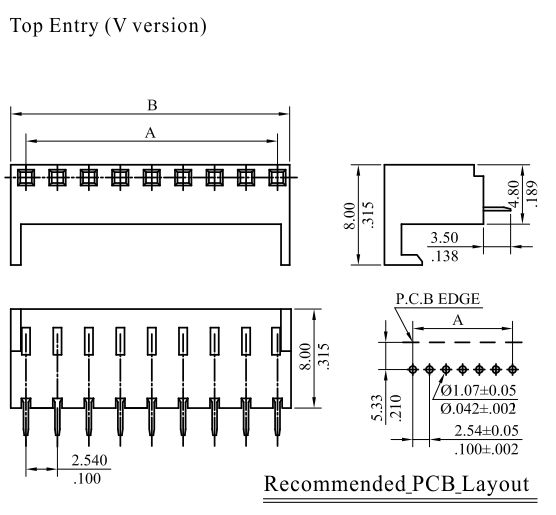

FormulaP/N 2405S**V*00
Options-
Other InformatonMates with 2556P,2557P,2566P,2567P
Product2405S
Circuits2~20 circuits
MaterialThermoplastic UL94V-0/Brass
Material Options-
Color Options-
FormulaP/N 2405S**H*00
Options-
Other InformatonMates with 2556P,2557P,2566P,2567P
Product2405S
Circuits2~20 circuits
MaterialThermoplastic UL94V-0/Brass
Material Options-
Color Options-

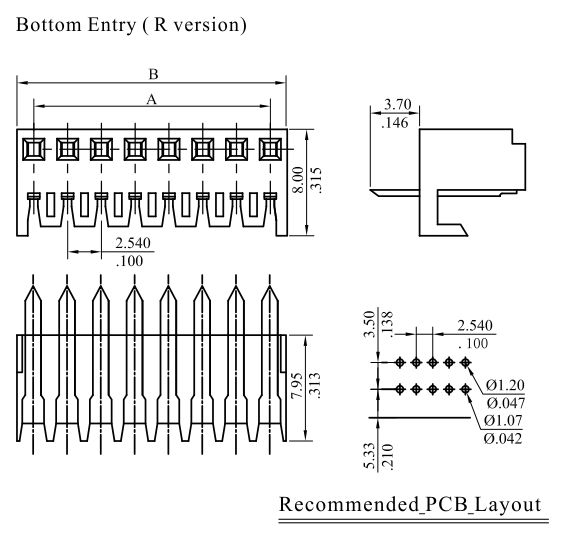

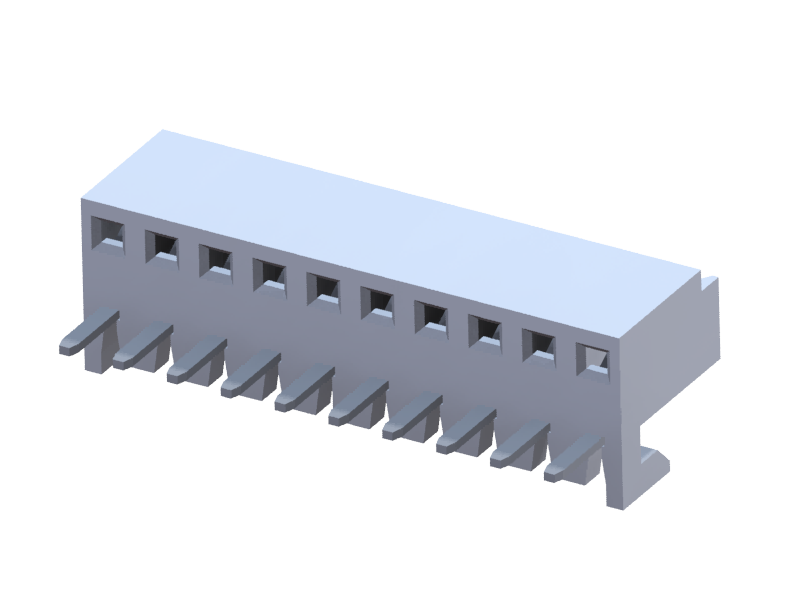

FormulaP/N 2405S**R*00
Options-
Other InformatonMates with 2556P,2557P,2566P,2567P
