2.54mm (.100″) Board to Board Connector

Specification

Measurement2.54mm (.100")
Circuits3~99 circuits
Current Rating3A AC DC
Voltage Rating250V AC DC
Temperature rating:-40℃~+105℃
Contact resistance20mΩ max.
Insulation resistance1000MΩ min.
Withstanding voltage500V AC/min.

Standards

Product Details

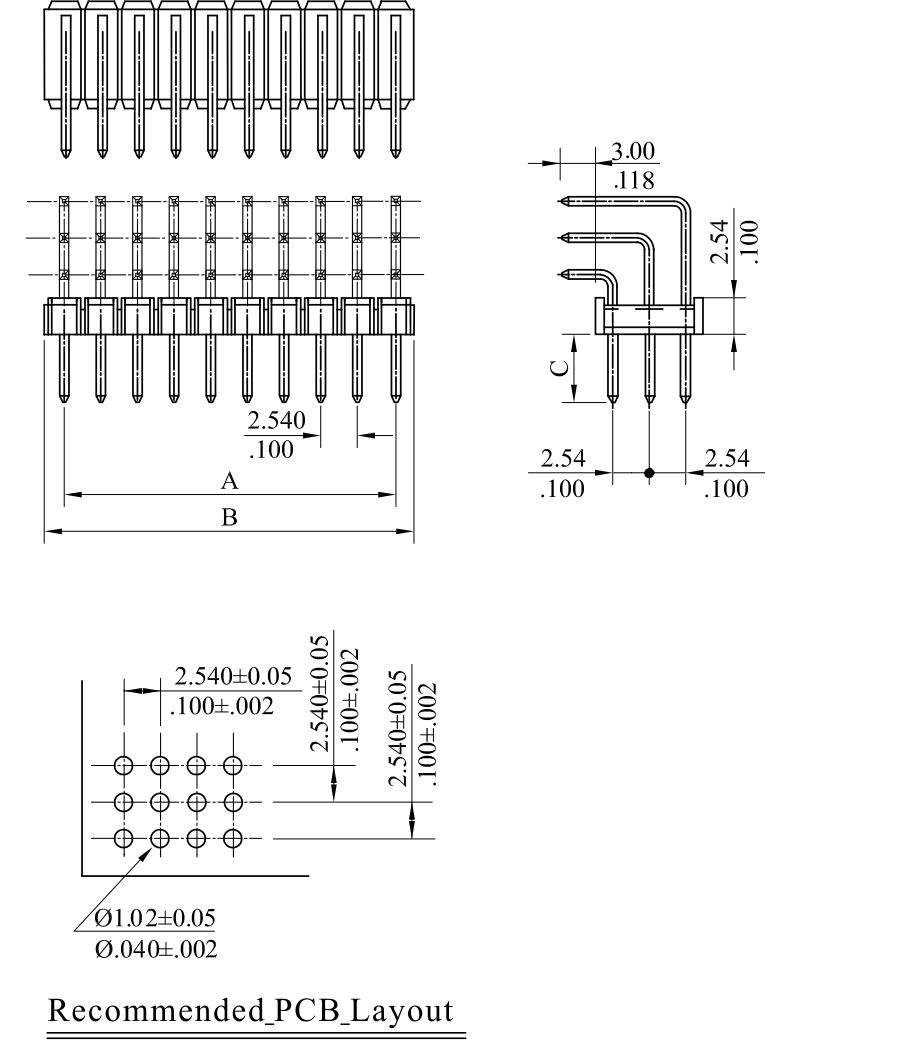

  • 3559 Series 2.54mm (.100") Triple Row Breakaway Right Angel Header
Product3559P
Circuits3~99 circuits
MaterialThermoplastic UL94V-0/Brass
Material Options-
Color Options-
FormulaP/N 3559P****00
Options-
Other Informaton-
