2.50mm (.098″) Wire to Wire Connector

Specification

Measurement2.50mm (.098")
Circuits2~12 circuits
Current Rating3A AC DC
Voltage Rating250V AC DC
Temperature rating:-25℃~+85℃
Contact resistance20mΩ max.
Insulation resistance1000MΩ min.
Withstanding voltage1000V AC/min.

Standards

Product Details

  • 5700 Series 2.50mm (.098") Housing
  • 5700 Series 2.50mm (.098") Housing
  • 5713T Crimping Terminal
  • 5714T Crimping Terminal
Product5700S
Circuits2~12 circuits
MaterialNylon 6/6 UL94V-0
Material Options-
Color Options-
FormulaP/N 5700S**M0*0
Options-
Other InformatonMates with 6713 terminal

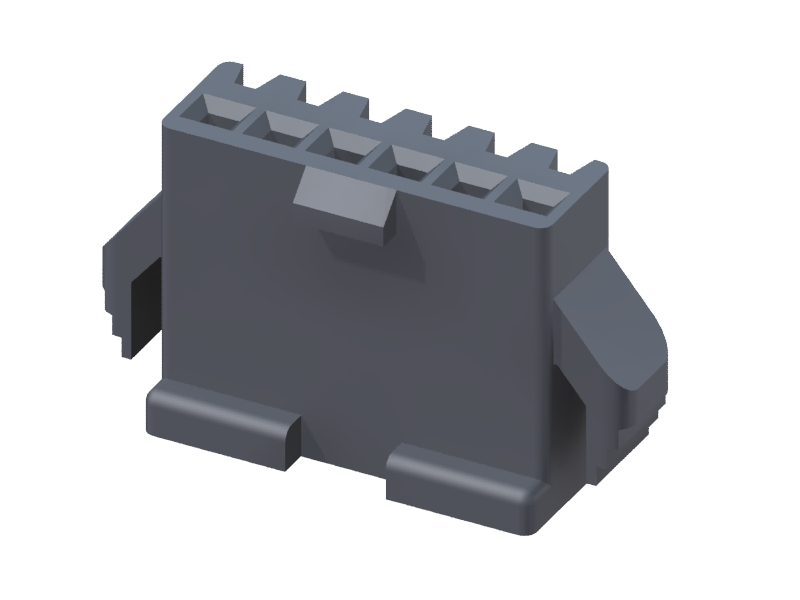

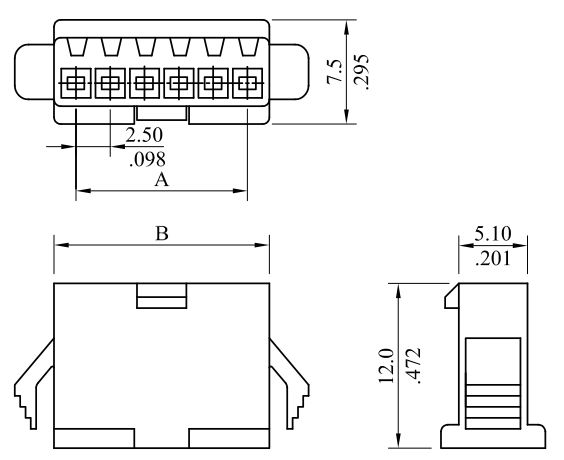

Product5700S
Circuits2~12 circuits
MaterialNylon 6/6 UL94V-0
Material Options-
Color Options-
FormulaP/N 5700S**F0*0
Options-
Other InformatonMates with 6714 terminal

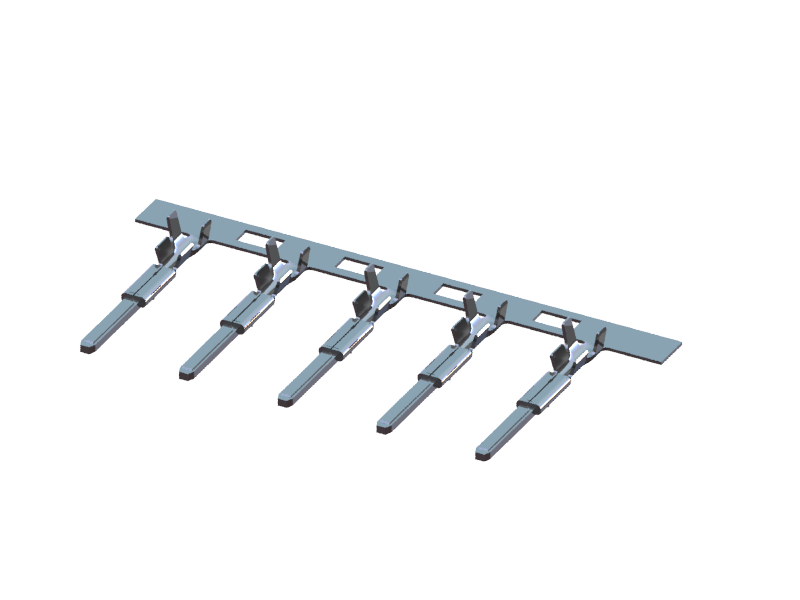

Product5713T
Circuits-
MaterialPhosphor Bronze
Material Options-
Color Options-
FormulaP/N 5713TPB0000
Options-
Other InformatonMates with 5700S AWG 22~28 Tin Plated 8K Pcs/Reel

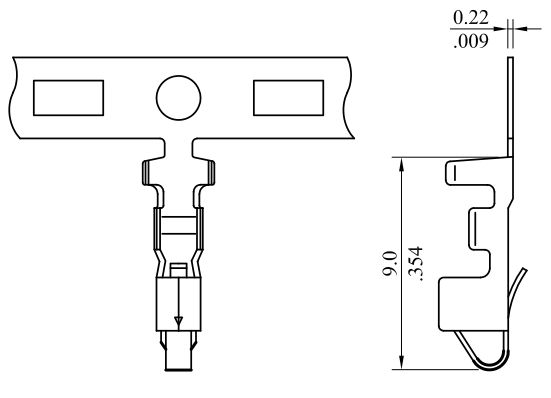

Product5714T
Circuits-
MaterialPhosphor Bronze
Material Options-
Color Options-
FormulaP/N 5714TPB0000
Options-
Other InformatonMates with 5700S AWG 22~28 Tin Plated 5K Pcs/Reel
