2.00mm(.079″) Board In Connector

Specification

Measurement2.00mm(.079")
Circuits2~20 circuits
Current Rating2A AC DC
Voltage Rating250V AC DC
Temperature rating:-40℃~+105℃
Contact resistance20mΩ max.
Insulation resistance1000MΩ min.
Withstanding voltage1000V AC/min.

Standards

Product Details

  • 2012 Series 2.00mm(.079") Board In Housing
  • 2012T Series 2.00mm(.079") Board In Terminal
  • 2012T Series 2.00mm(.079") Board In Terminal

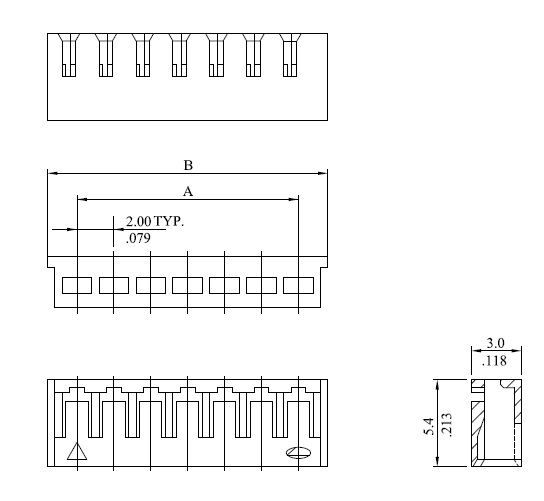

Product2012S
Circuits2~20 circuits
MaterialPolyester UL94V-0
Material Options-
Color Options-
FormulaP/N 2012S**0000
Options-
Other InformatonMates with 2012T
Product2012T
Circuits-
MaterialPhosphor Bronze
Material Options-
Color Options-

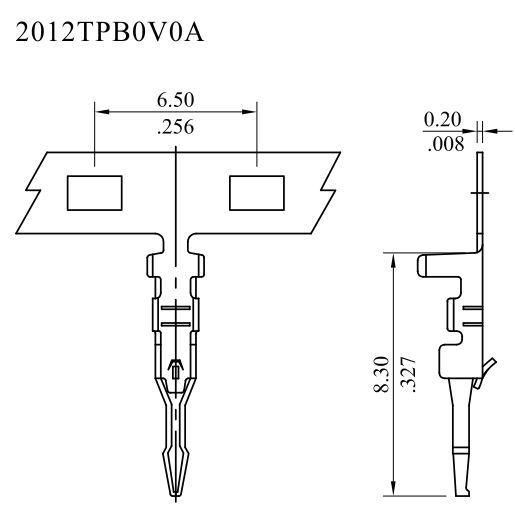

FormulaP/N 2012TPB0V0A
Options-
Other InformatonMates with 2012S AWG 24~28 Tin plated 10K Pcs/Reel
Product2012T
Circuits-
MaterialPhosphor Bronze
Material Options-
Color Options-

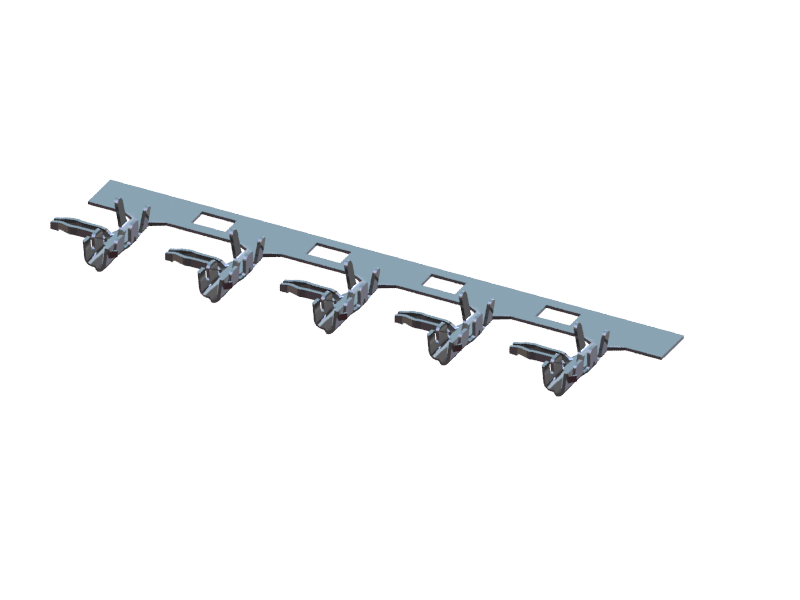

FormulaP/N 2012TPB0H0A
Options-
Other InformatonMates with 2012S AWG 24~28 Tin plated 10K Pcs/Reel
