1.27mm(.050″) IDC Connector

Specification

Measurement1.27mm (.050")
Circuits4~24 circuits
Current Rating1A AC DC
Voltage Rating30V AC DC
Temperature rating:-40℃~+105℃
Contact resistance20mΩ max.
Insulation resistance1000MΩ min.
Withstanding voltage500V AC/min.

Standards

Product Details

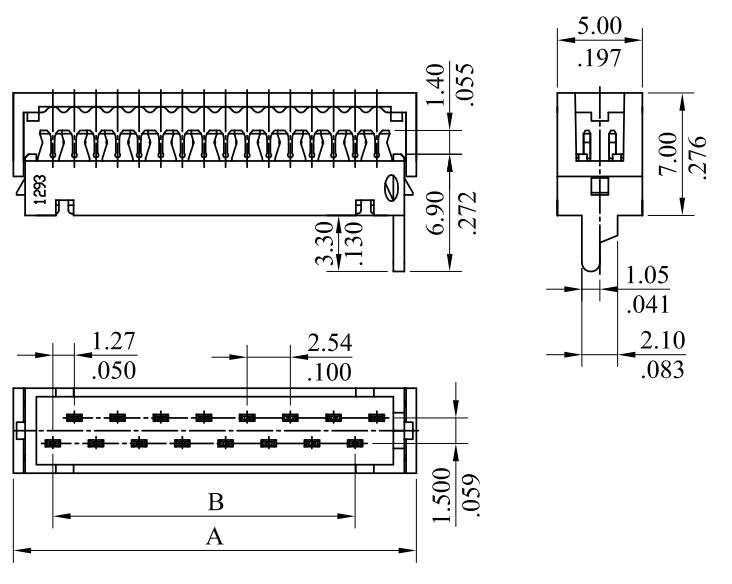

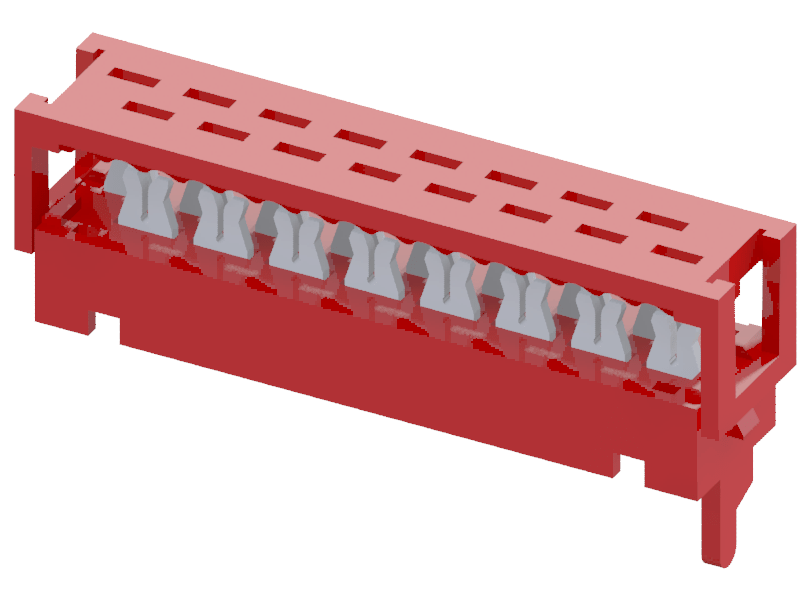

  • 1293 Series 1.27mm(.050") IDC Connector Male on Wire Type

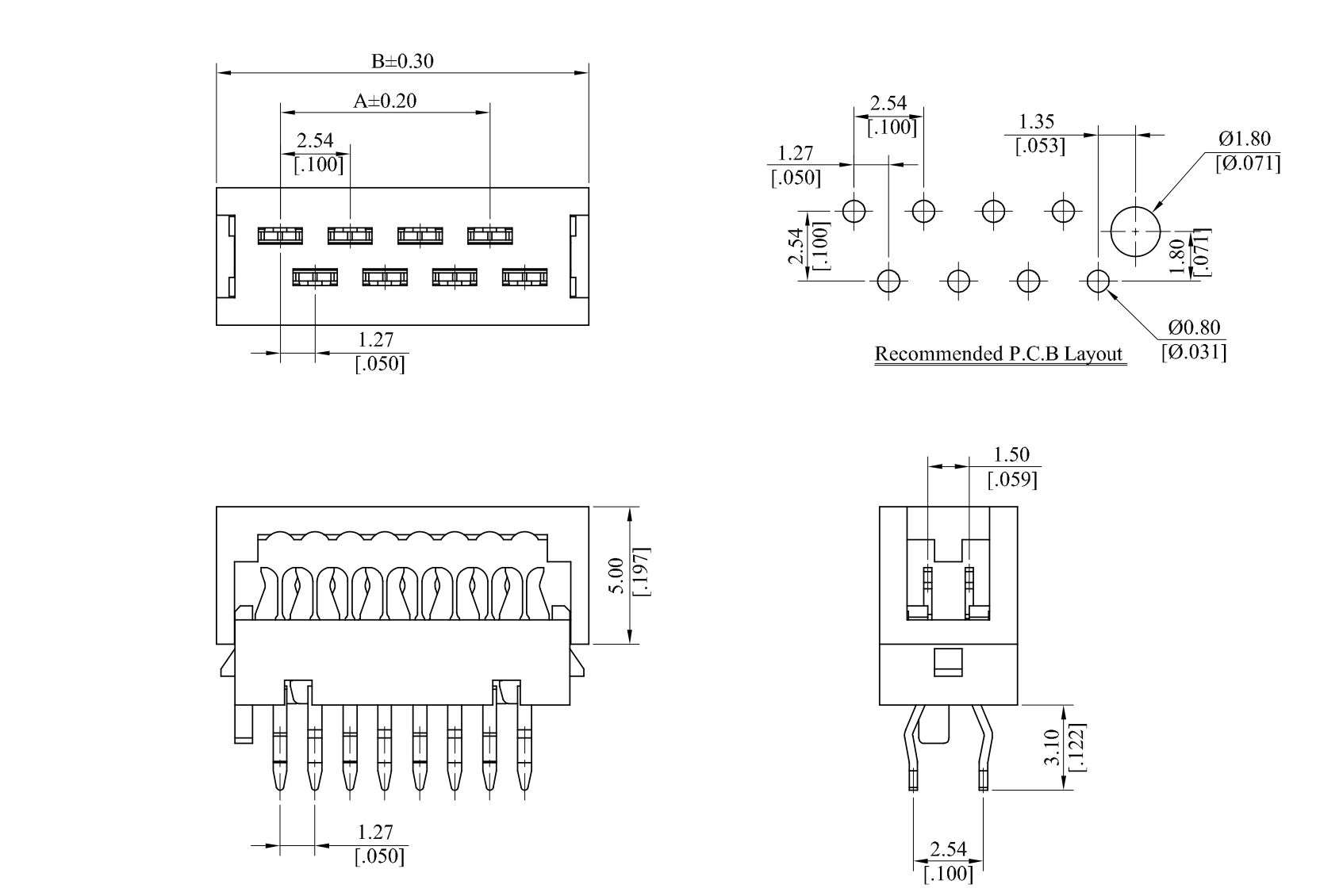

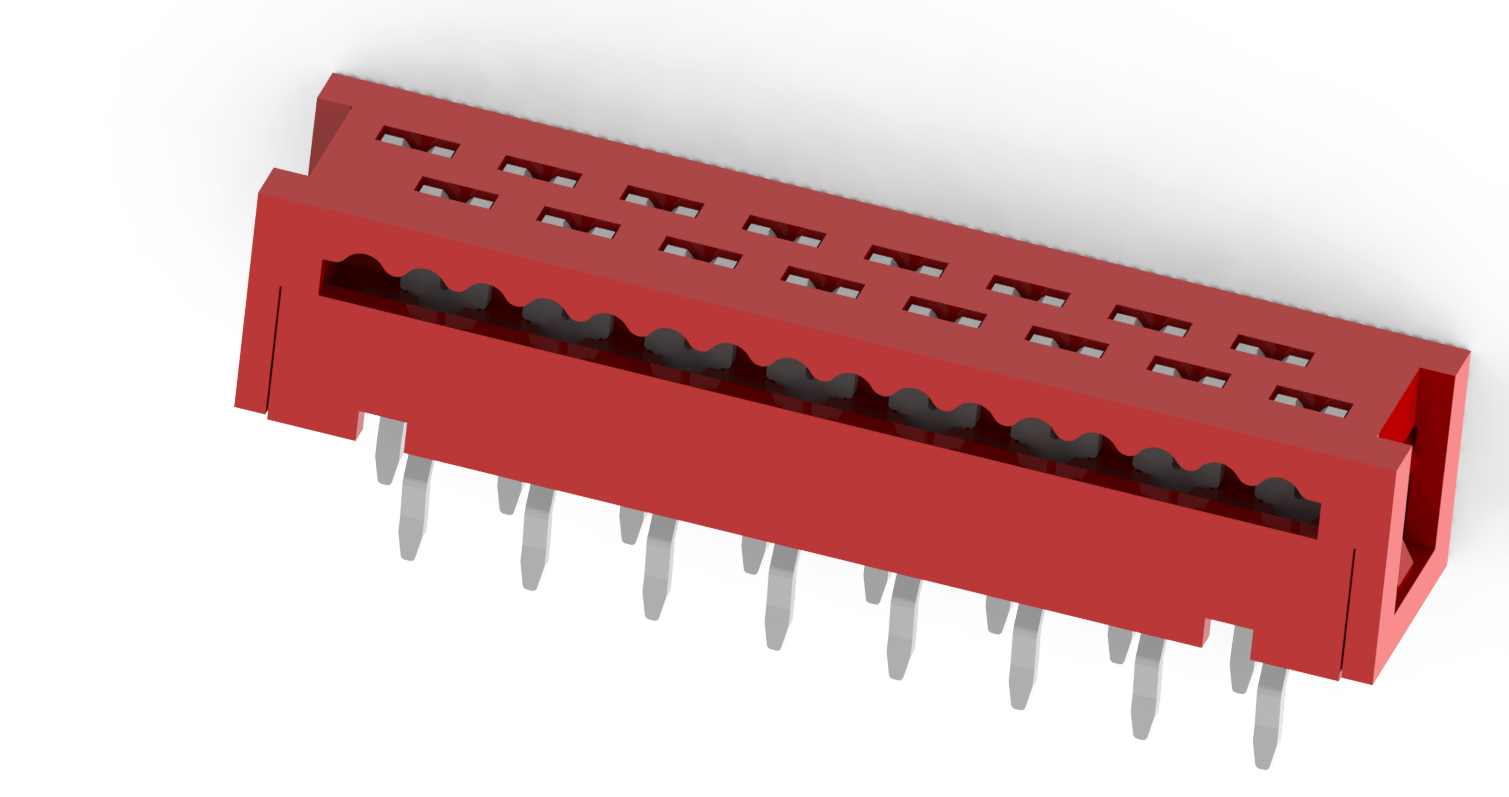

  • 1293 Series 1.27mm(.050") IDC DIP Connector
Product1293S
Circuits6,10,12,14,16 circuits
MaterialPolyester/Copper Alloy
Material Options-
Color OptionsRed
FormulaP/N 1293S**0000
Options-
Other Informaton-
Product1293P
Circuits4~24 circuits
MaterialThermoplastic,UL94V-0/Copper Alloy
Material Options-
Color OptionsRed
FormulaP/N 1293P**V***
Options-
Other Informaton-
