1.27mm (.050″) Board to Board Connector

Specification

Measurement1.27mm (.050")
Circuits2~80 circuits
Current Rating1A AC DC
Voltage Rating250V AC DC
Temperature rating: -40℃~+105℃
Contact resistance20mΩ max.
Insulation resistance1000MΩ min.
Withstanding voltage500V AC/min.

Standards

Product Details

  • 1382 Series 1.27mm (.050") Dual Row SMT Socket

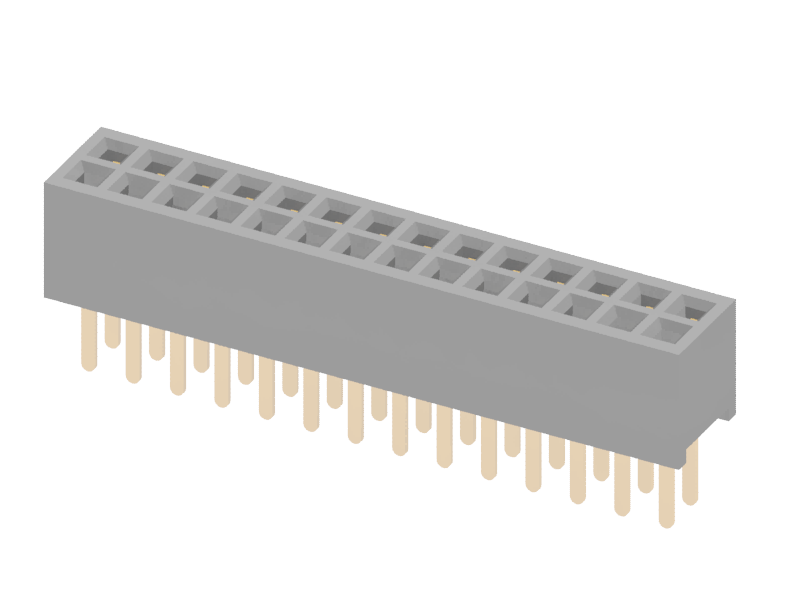

  • 1382 Series 1.27mm (.050") Dual Row Socket
Product1382S
Circuits2~80 circuits
MaterialNylon 6T UL94V-0/Copper alloy
Material Options-
Color Options-
FormulaP/N 1382S**M**P
Options-
Other InformatonMates with 1.27*1.27mm(.050"*.050")Pin Header

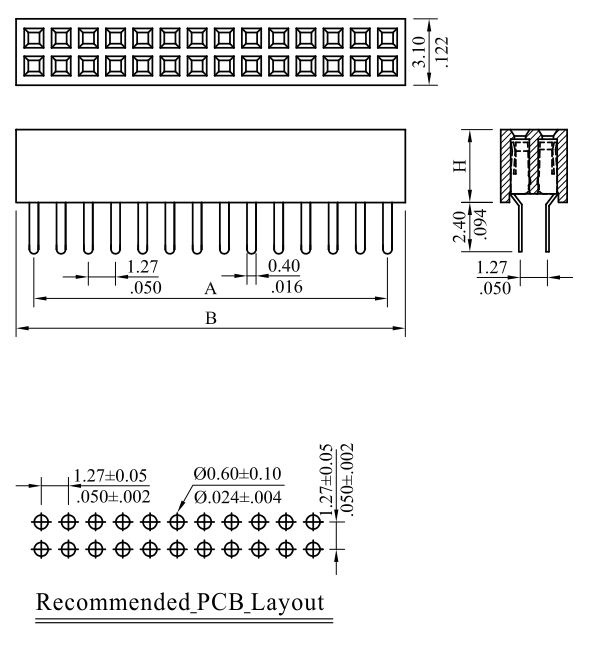

Product1382S
Circuits2~80 circuits
MaterialNylon 6T UL94V-0/Copper alloy
Material Options-
Color Options-
FormulaP/N 1382S**V**0
Options-
Other InformatonMates with 1.27*1.27mm(.050"*.050")Pin Header
