1.25mm(.049″)FFC/FPC Connector

Specification

Measurement1.25mm (.049")
Circuits4~32 circuits
Current Rating1A AC DC
Voltage Rating30V AC DC
Temperature rating: -25℃~+85℃
Contact resistance20mΩ max.
Insulation resistance500MΩ min.
Withstanding voltage500V AC/min.

Standards

Product Details

  • 1255 Series 1.25mm(.049")ZIF Top Entry FFC/FPC Connector

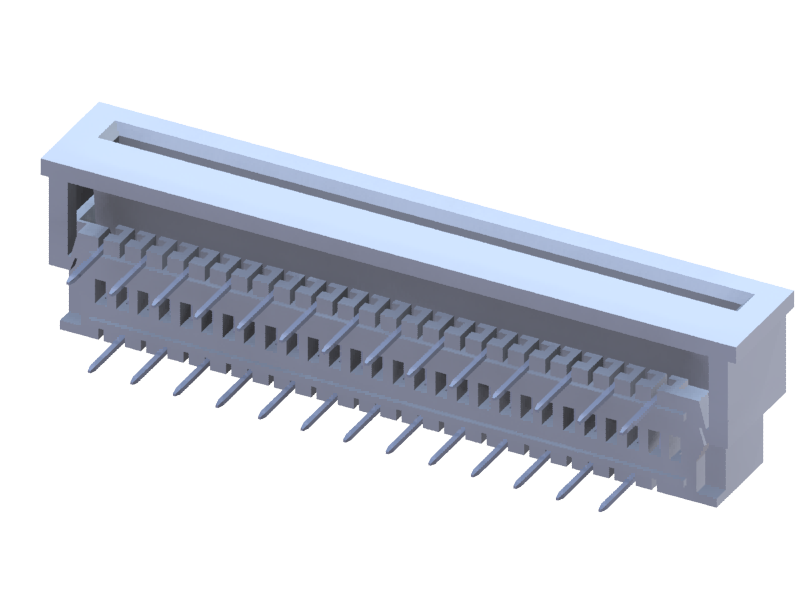

  • 1255 Series 1.25mm(.049")ZIF Side Entry FFC/FPC Connector
Product1255S
Circuits4~32 circuits
MaterialThermoplatic UL94V-0/Phosphor Bronze
Material Options-
Color Options-
FormulaP/N 1255S**VT*0
Options-
Other Informaton-
Product1255S
Circuits4~32 circuits
MaterialThermoplatic UL94V-0/Phosphor Bronze
Material Options-
Color Options-

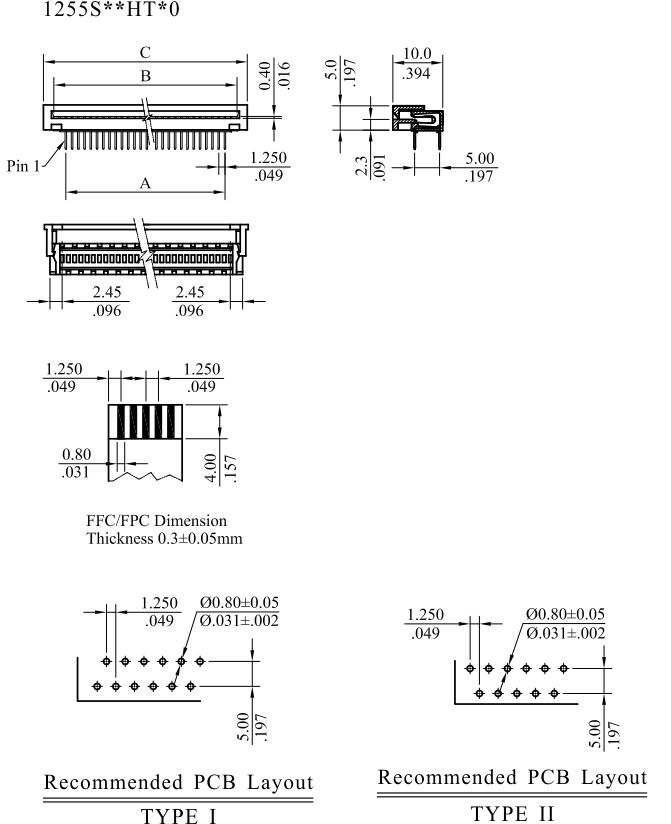

FormulaP/N 1255S**HT*0
Options-
Other Informaton-
