1.25mm(.049″) Wire to Board Connector

Specification

Measurement1.25mm (.049")
Circuits2~20 circuits
Current Rating1A AC DC
Voltage Rating125V AC DC
Temperature rating:-25℃~+85℃
Contact resistance30mΩ max.
Insulation resistance100MΩ min.
Withstanding voltage500V AC/min.

Standards

Product Details

  • 1252 Series 1.25mm (.049") Single Row Housing

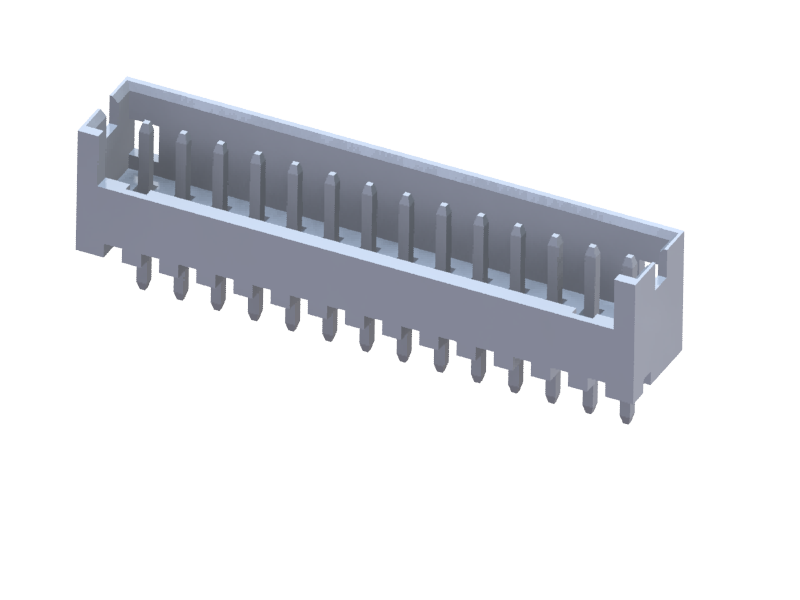

  • 1252 Series 1.25mm (.049") Single Row Header V Type
  • 1252 Series 1.25mm (.049") Single Row Header H Type
  • 1252 Series 1.25mm (.049") Single Row Header SMT Type V Type
  • 1252 Series 1.25mm (.049") Single Row Header SMT Type H Type
Product1252S
Circuits2~20 circuits
MaterialPolyester UL94V-0
Material Options-
Color Options-
FormulaP/N 1252S**0000
Options-
Other InformatonMates with 1261T
Product1252P
Circuits2~20 circuits
MaterialPolyester UL94V-0/Copper Alloy
Material Options-
Color Options-
FormulaP/N 1252P**V00*
Options-
Other InformatonMates with 1252S
Product1252P
Circuits2~20 circuits
MaterialHigh Temperature Thermoplastic UL94V-0
Material Options-
Color Options-
FormulaP/N 1252P**H000
Options-
Other InformatonMates with 1252S
Product1252P
Circuits2~20 circuits
MaterialHigh Temperature Thermoplastic UL94V-0/Copper Alloy
Material Options-
Color Options-
FormulaP/N 1252P**MV00
Options-
Other InformatonMates with 1252S
Product1252P
Circuits2~20 circuits
MaterialHigh Temperature Thermoplastic UL94V-0/Copper Alloy
Material Options-
Color Options-
FormulaP/N 1252P**MH00
Options-
Other InformatonMates with 1252S
