1.25mm (.049″) Wire to Board Connector

Specification

Measurement1.25mm (.049")
Circuits2~15 circuits
Current Rating1A AC DC
Voltage Rating125V AC DC
Temperature rating:-40℃~+85℃
Contact resistance20mΩ max.
Insulation resistance100MΩ min.
Withstanding voltage250V AC/min.

Standards

Product Details

  • 1254 Series 1.25mm (.049") Housing
  • 1254T Crimping Terminal

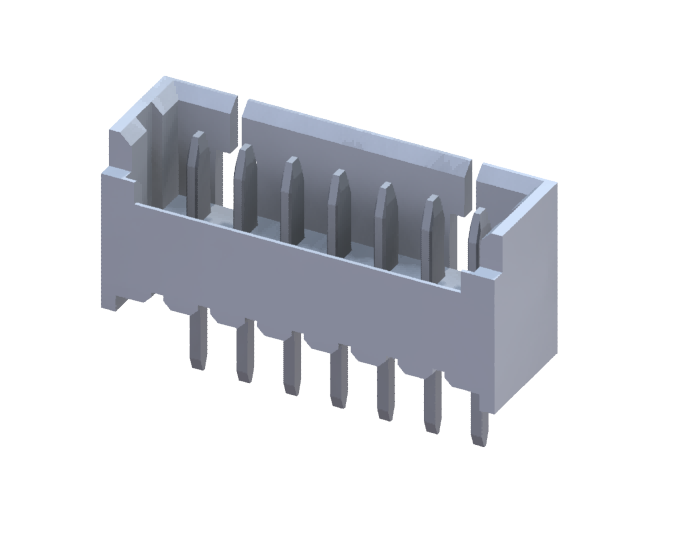

  • 1254 Series 1.25mm(.049") Header
  • 1254 Series 1.25mm(.049") Header
  • 1254 Series 1.25mm(.049") Header
  • 1254 Series 1.25mm(.049") Header

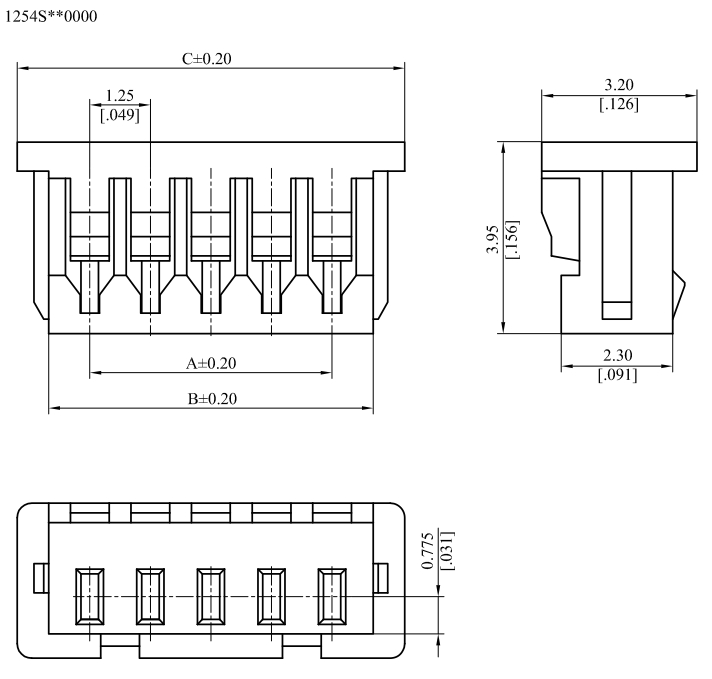

Product1254S
Circuits2~15 circuits
MaterialThermoplastic UL94V-0
Material Options-
Color Options-
FormulaP/N 1254S**0000
Options-
Other InformatonMates with 1254 terminal
Product1254T
Circuits-
MaterialPhosphor Bronze
Material Options-
Color Options-
FormulaP/N 1254TPB0000
Options-
Other InformatonMates with 1254 housing AWG 28~32 Tin Plated 15K Pcs/Reel
Product1254P
Circuits2~15 circuits
MaterialHigh Temperature Thermoplastic UL94V-0/Copper Alloy
Material Options-
Color Options-
FormulaP/N 1254P**V000
Options-
Other InformatonMates with 1254 housing
Product1254P
Circuits2~15 circuits
MaterialHigh Temperature Thermoplastic UL94V-0/Copper Alloy
Material Options-
Color Options-
FormulaP/N 1254P**H000
Options-
Other InformatonMates with 1254 housing

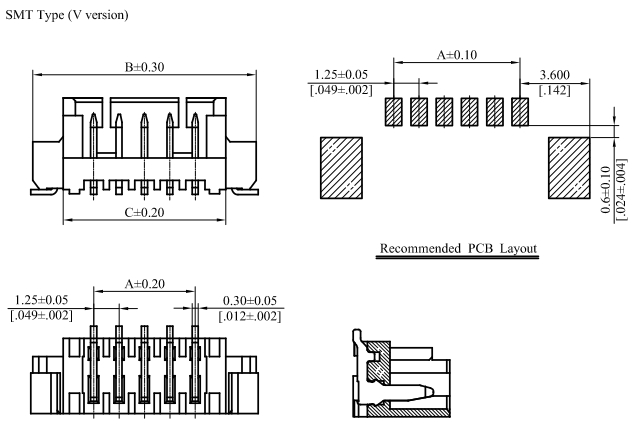

Product1254P
Circuits2~15 circuits
MaterialHigh Temperature Thermoplastic UL94V-0/Copper Alloy
Material Options-
Color Options-
FormulaP/N 1254P**MV00
Options-
Other InformatonMates with 1254 housing

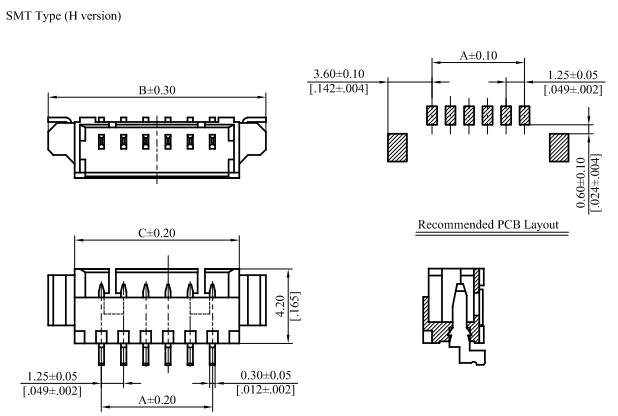

Product1254P
Circuits2~15 circuits
MaterialHigh Temperature Thermoplastic UL94V-0/Copper Alloy
Material Options-
Color Options-
FormulaP/N 1254P**MH00
Options-
Other InformatonMates with 1254 housing
