1.25mm (.049″) Wire to Board Connector

Specification

Measurement1.25mm (.049")
Circuits2~30 circuits
Current Rating1A AC DC
Voltage Rating50V AC DC
Temperature rating:-25℃~+85℃
Contact resistance30mΩ max.
Insulation resistance500MΩ min.
Withstanding voltage500V AC/min.

Standards

Product Details

  • 1258 Series 1.25mm (.049") Housing
  • 1258 Series 1.25mm (.049") Header SMT Type
  • 1258T Crimping Terminal
Product1258S
Circuits2~30 circuits
MaterialPolyester UL94V-0
Material Options-
Color Options-
FormulaP/N 1258S**0000
Options-
Other InformatonMates with 1258 terminal

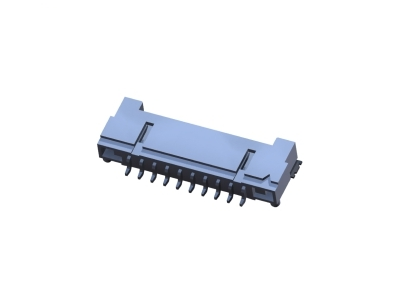

Product1258P
Circuits2~30 circuits
MaterialHigh temperature thermoplastic UL94V-0/Brass
Material Options-
Color Options-
FormulaP/N 1258P**M*00
Options-
Other InformatonMates with 1258S
Product1258T
Circuits-
MaterialPhosphor Bronze
Material Options-
Color Options-
FormulaP/N 1258TPB0000
Options-
Other InformatonMates with 1258S AWG 26~32 Tin Plated 10K Pcs/Reel
