1.25mm (.049″) Wire to Board Connector

Specification

Measurement1.25mm (.049")
Circuits2~30 circuits
Current Rating1A AC DC
Voltage Rating100V AC DC
Temperature rating:-25℃~+85℃
Contact resistance20mΩ max.
Insulation resistance500MΩ min.
Withstanding voltage500V AC/min.

Standards

Product Details

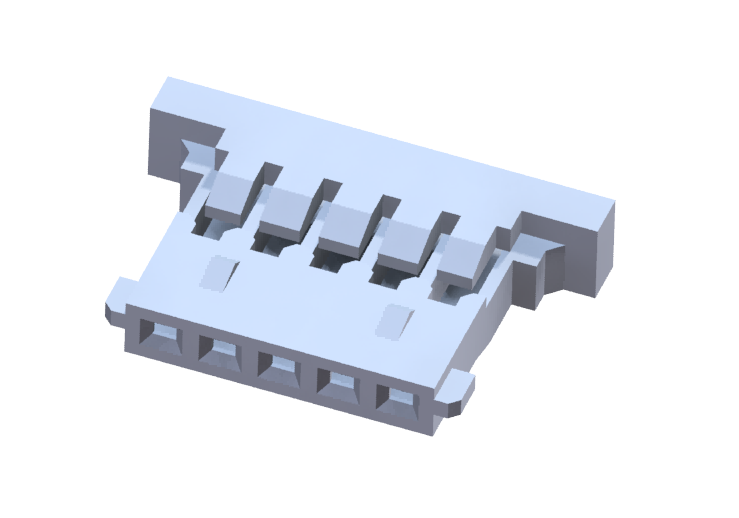

  • 1259 Series 1.25mm (.049") Housing
  • 1259 Series 1.25mm (.049") Header SMT Type
  • 1259T Crimping Terminal

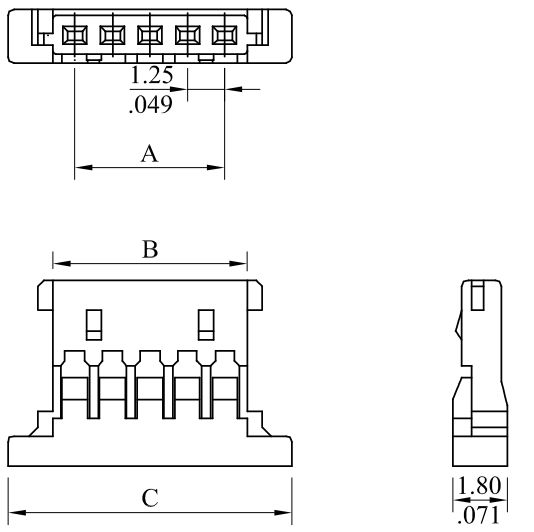

Product1259S
Circuits2~30 circuits
MaterialPolyester UL94V-0
Material Options-
Color Options-
FormulaP/N 1259S**0000
Options-
Other InformatonMates with 1259 terminal

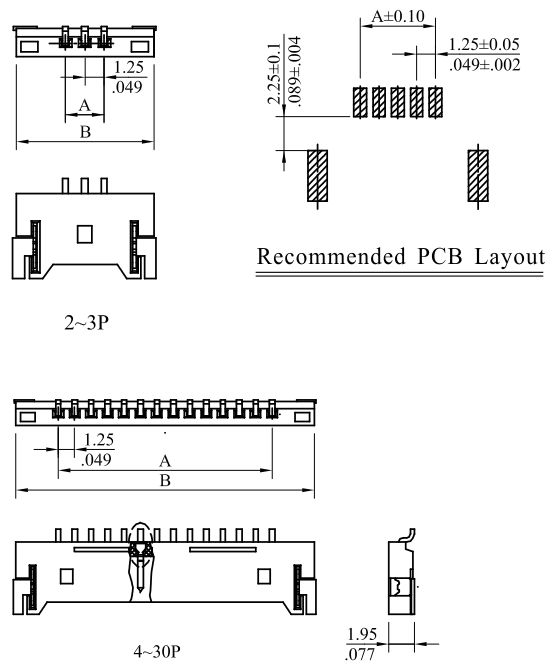

Product1259P
Circuits2~30 circuits
MaterialHigh temperature thermoplastic UL94V-0/Brass
Material Options-
Color Options-
FormulaP/N 1259P**MH00
Options-
Other InformatonMates with 1259S
Product1259T
Circuits-
MaterialPhosphor Bronze
Material Options-
Color Options-
FormulaP/N 1259TPBU000
Options-
Other InformatonMates with 1259S AWG 28~32 Gold flash 15K Pcs/Reel
