1.00mm (.040″) Board to Board Connector

Specification

Measurement1.00mm (.040")
Circuits21,31,41,51 circuits
Current Rating0.5A AC DC
Voltage Rating150V AC DC
Temperature rating: -45℃~+125℃
Contact resistance50mΩ max.
Insulation resistance500MΩ min.
Withstanding voltage250V AC/min.

Standards

Product Details

  • 1008 Series 1.00mm (.040") Connector
Product1008P
Circuits21,31,41,51 circuits
MaterialThermoplatic UL94V-0/Phosphor Bronze
Material Options-
Color Options-

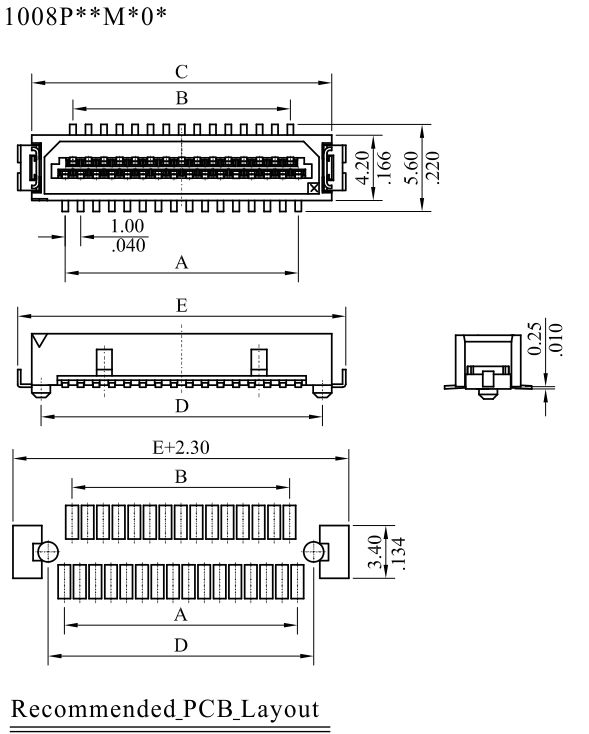

FormulaP/N 1008P**M*0*
Options-
Other Informaton-
