Telephone Jack (PCB Mount)

Specification

Measurement1.27mm(.050")*2.54mm(.100")
Circuits-
Current Rating1.5A AC DC
Voltage Rating125V AC DC
Temperature rating:-25℃~+105℃
Contact resistance20mΩ max.
Insulation resistance1000MΩ min.
Withstanding voltage500V AC/min.

Standards

Product Details

  • 7621 Series PCB Mount Telephone Jack
  • 7621 Series PCB Mount Telephone Jack
  • 7621 Series PCB Mount Telephone Jack
  • 7621 Series PCB Mount Telephone Jack
Product7621
Circuits-
MaterialPolyester UL94V-0/Phosphor Bronze
Material Options-
Color Options-
FormulaP/N 7621-0404*1
Options-
Other Informaton-
Product7621
Circuits-
MaterialPolyester UL94V-0/Phosphor Bronze
Material Options-
Color Options-

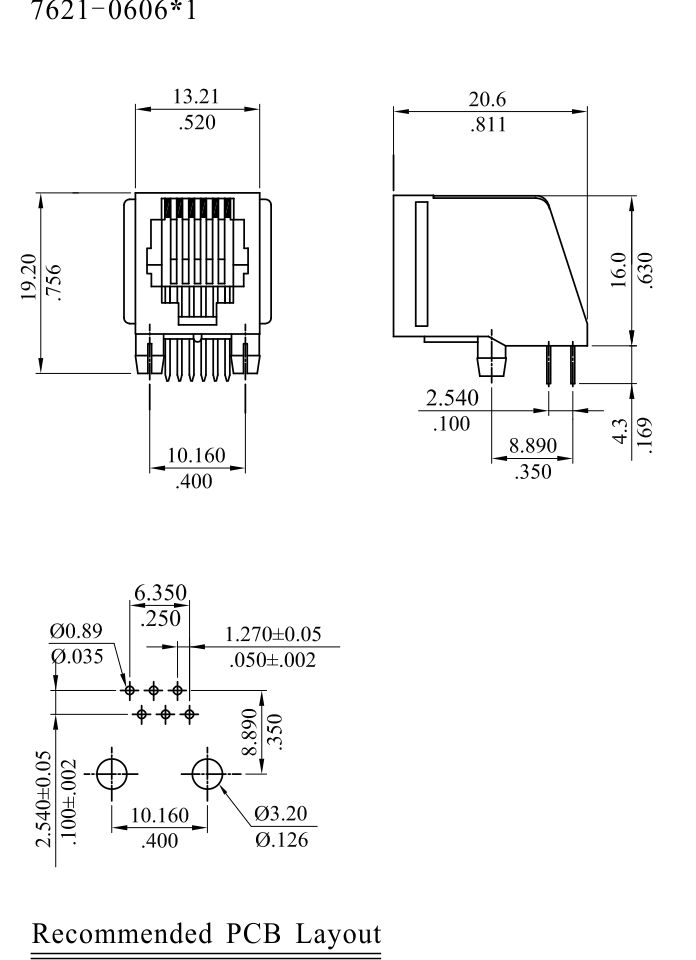

FormulaP/N 7621-0606*1
Options-
Other Informaton-
Product7621
Circuits-
MaterialPolyester UL94V-0/Phosphor Bronze
Material Options-
Color Options-
FormulaP/N 7621-0606*S
Options-
Other Informaton-
Product7621
Circuits-
MaterialPolyester UL94V-0/Phosphor Bronze
Material Options-
Color Options-

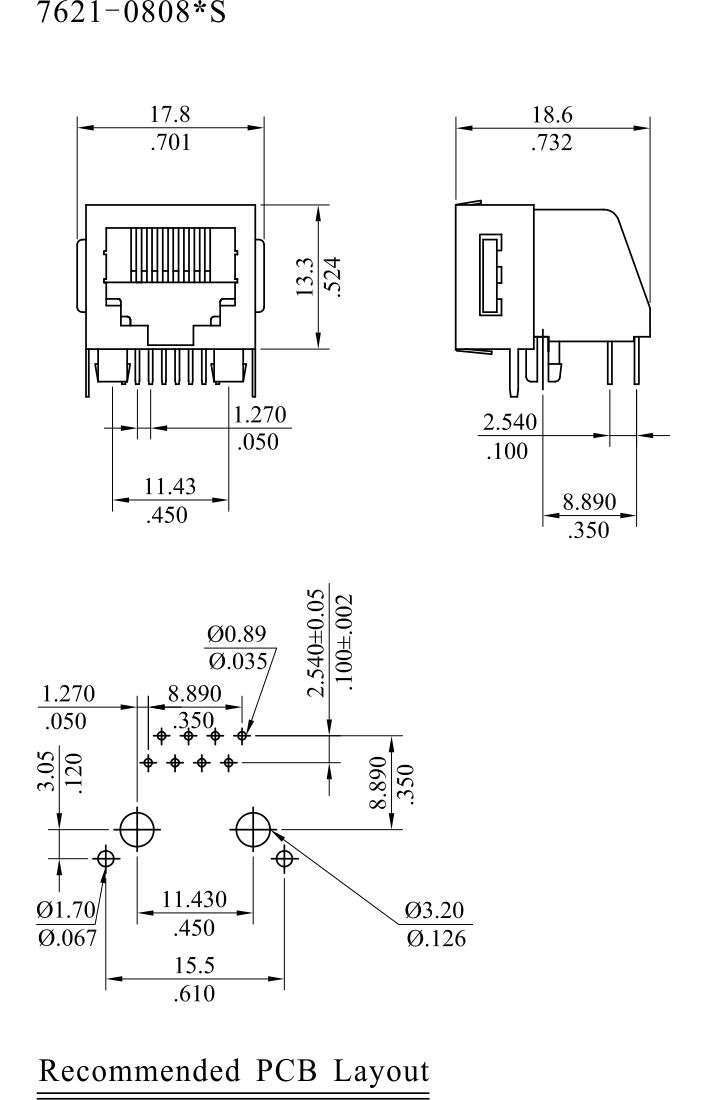

FormulaP/N 7621-0808*S
Options-
Other Informaton-
