5.08mm (.200″) Wire to Board Connector

Specification

Measurement5.08mm (.200")
Circuits2~9 circuits
Current Rating7A AC DC
Voltage Rating250V AC DC
Temperature rating:-25℃~+85℃
Contact resistance10mΩ max.
Insulation resistance1000MΩ min.
Withstanding voltage1500V AC/min.

Standards

Product Details

  • 3976 Series 3.96mm (.156") Housing
  • 3976T Series Crimping Terminal

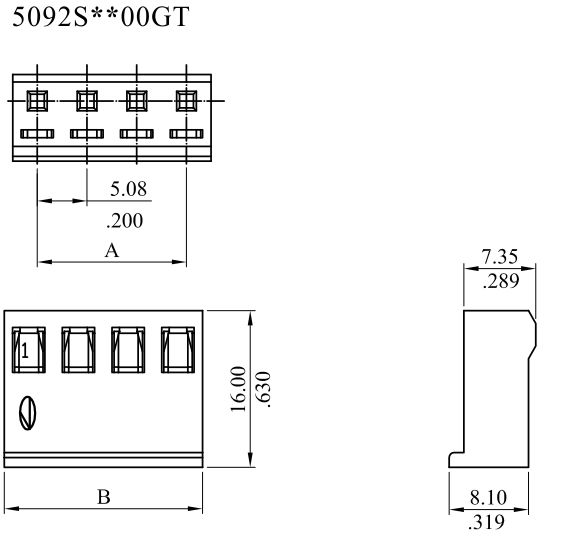

Product5092S
Circuits2~9 circuits
MaterialNylon 6/6 UL94V-0
Material Options-
Color Options-
FormulaP/N 5092S**00GT
Options-
Other InformatonMates with 3976 terminal
Product3976T
Circuits-
MaterialBrass
Material Options-
Color Options-
FormulaP/N 3976TCB00V1
Options-
Other InformatonMates with 5092S AWG 18~24 Tin Plated 3.5K Pcs/Reel
