5.08mm(.200″) Wire to Board Connector

Specification

Measurement5.08mm (.200")
Circuits2~20 circuits
Current Rating7A AC DC
Voltage Rating250V AC DC
Temperature rating:-25℃~+105℃
Contact resistance20mΩ max.
Insulation resistance1000MΩ min.
Withstanding voltage1500V AC/min.

Standards

Product Details

  • 5080 Series 5.08mm (.200") Housing
  • 3979T Crimping Terminal

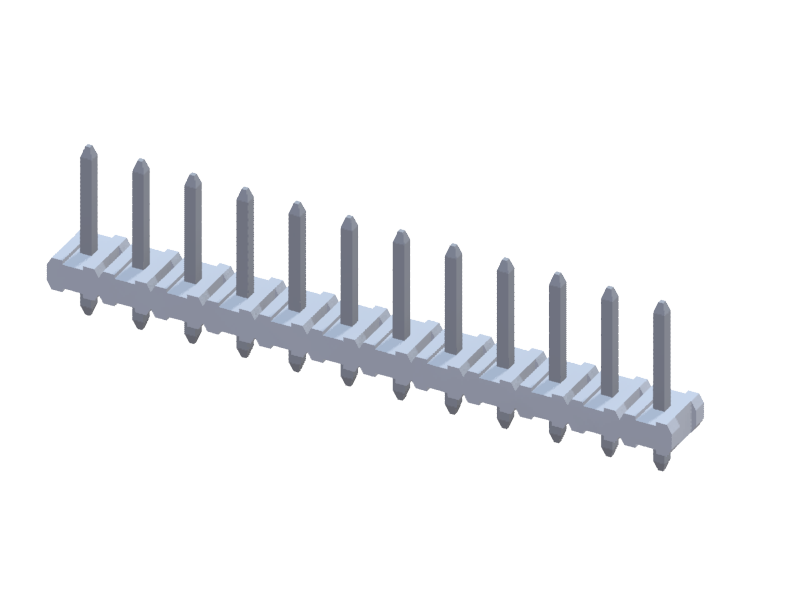

  • 5086 Series 5.08mm (.200") Single Row Breakaway Header
  • 5086 Series 5.08mm (.200") Single Row Breakaway Header
  • 5086 Series 5.08mm (.200") Single Row Breakaway Header

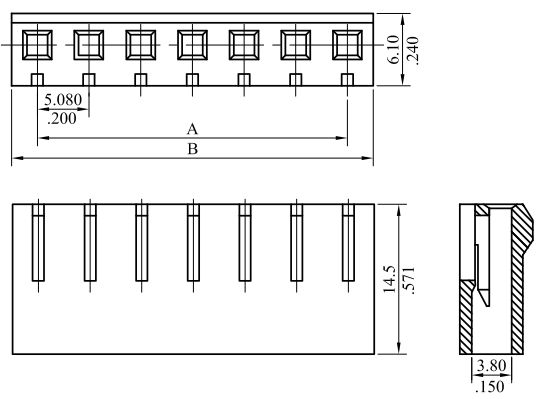

Product5080S
Circuits2~16 circuits
MaterialNylon 6/6 UL94V-0
Material Options-
Color Options-
FormulaP/N 5080S**0000
Options-
Other InformatonMates with 3979 terminal
Product3979T
Circuits-
MaterialPhosphor Bronze
Material Options-
Color Options-
FormulaP/N 3979TPB0000
Options-
Other InformatonMates with 5080S AWG 18~26 Tin Plated 5K Pcs/Reel

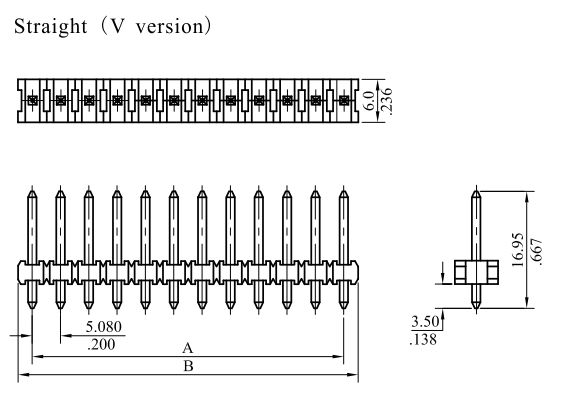

Product5086P
Circuits2~20 circuits
MaterialNylon 6/6 UL94V-0/Brass
Material Options-
Color Options-
FormulaP/N 5086P**V000
Options-
Other InformatonMates with 5080S
Product5086P
Circuits2~20 circuits
MaterialNylon 6/6 UL94V-0/Brass
Material Options-
Color Options-
FormulaP/N 5086P**R000
Options-
Other InformatonMates with 5080S
Product5086P
Circuits2~20 circuits
MaterialNylon 6/6 UL94V-0/Brass
Material Options-
Color Options-
FormulaP/N 5086P**H000
Options-
Other InformatonMates with 5080S
