4.20mm (.165″) Receptacle/Plug Connector

4.20mm (.165″) Receptacle/Plug Connector

Specification

Measurement 4.20mm (.165")
Circuits 2~24 circuits
Current Rating 9A AC DC
Voltage Rating 250V AC DC
Temperature rating: -40℃~+105℃
Contact resistance 20mΩ max.
Insulation resistance 1000MΩ min.
Withstanding voltage 1500V AC/min.

Standards

Product Details

  • 6740 Series 4.20mm (.165") Housing
  • 6740 Series 4.20mm (.165") Housing
  • 6741T Crimping Terminal
  • 6742T Crimping Terminal
  • 6745 Series 4.20mm(.165") Pitch PCB Power Connector
  • 6745 Series 4.20mm(.165") Pitch PCB Power Connector
  • 6745 Series 4.20mm(.165") Pitch PCB Power Connector
  • 6745 Series 4.20mm(.165") Pitch PCB Power Connector
  • 6745 Series 4.20mm(.165") Pitch PCB Power Connector
  • 6745 Series 4.20mm(.165") Pitch PCB Power Connector
Product 6740S
Circuits 2~24 circuits
Material Nylon 6/6 UL94V-0
Material Options Nylon 6/6 UL94V-2
Color Options -
Formula P/N 6740S**M00*
Options -
Other Informaton Mates with 6741 terminal
Product 6740S
Circuits 2~24 circuits
Material Nylon 6/6 UL94V-0
Material Options Nylon 6/6 UL94V-2
Color Options -
Formula P/N 6740S**F00*
Options -
Other Informaton Mates with 6742 terminal
Product 6741T
Circuits -
Material Phosphor Bronze
Material Options -
Color Options -
Formula P/N 6741TPB0000
Options -
Other Informaton Mates with 6740S AWG 18~26 Tin Plated 3.5K Pcs/Reel
Product 6742T
Circuits -
Material Phosphor Bronze
Material Options -
Color Options -
Formula P/N 6742TPB0000
Options -
Other Informaton Mates with 6740S AWG 18~26 Tin Plated 3.5K Pcs/Reel
Product 6745P
Circuits 2~24 circuits
Material Nylon 6/6 UL94V-0/Brass
Material Options Nylon 6/6 UL94V-2
Color Options -
Formula P/N 6745P**V00*
Options -
Other Informaton Mates with 6740S
Product 6745P
Circuits 2~24 circuits
Material Nylon 6/6 UL94V-0/Brass
Material Options Nylon 6/6 UL94V-2
Color Options -
Formula P/N 6745P**V00*
Options -
Other Informaton Mates with 6740S
Product 6745P
Circuits 2~24 circuits
Material Nylon 6/6 UL94V-0/Brass
Material Options Nylon 6/6 UL94V-2
Color Options -
Formula P/N 6745P**V00*
Options -
Other Informaton Mates with 6740S

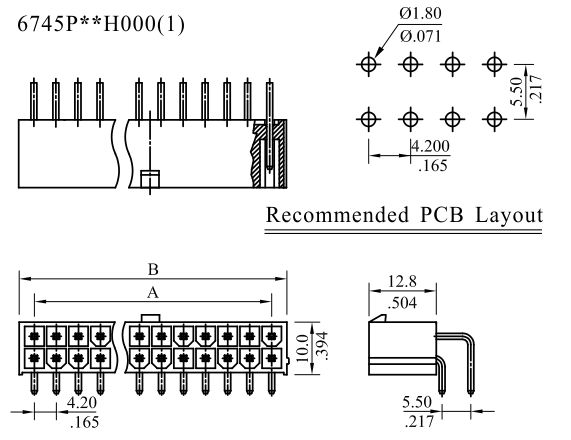

Product 6745P
Circuits 2~24 circuits
Material Nylon 6/6 UL94V-0/Brass
Material Options Nylon 6/6 UL94V-2
Color Options -
Formula P/N 6745P**H00*
Options -
Other Informaton Mates with 6740S
Product 6745P
Circuits 2~24 circuits
Material Nylon 6/6 UL94V-0/Brass
Material Options Nylon 6/6 UL94V-2
Color Options -
Formula P/N 6745P**H00*
Options -
Other Informaton Mates with 6740S
Product 6745P
Circuits 2~24 circuits
Material Nylon 6/6 UL94V-0/Brass
Material Options Nylon 6/6 UL94V-2
Color Options -
Formula P/N 6745P**H00*
Options -
Other Informaton Mates with 6740S
