2.54mm(.100″) Shrouded Connector

Specification

Measurement2.54mm (.100")
Circuits10,12,14,16,20,24,26,30,34,40,50,60,64 circuits
Current Rating3A AC DC
Voltage Rating250V AC DC
Temperature rating:-40℃~+105℃
Contact resistance20mΩ max.
Insulation resistance1000MΩ min.
Withstanding voltage500V AC/min.

Standards

Product Details

  • 2545 Series 2.54mm(.100")Straight Shrouded Header
  • 2545 Series 2.54mm(.100")Straight Shrouded Header
  • 2545 Series 2.54mm(.100")Right Angle Shrouded Header
  • 2545 Series 2.54mm(.100")Right Angle Shrouded Header
Product2545P
Circuits10,12,14,16,20,24,26,30,34,40,50,60,64 circuits
MaterialThermoplastic UL94V-0/Brass
Material Options-
Color Options-
FormulaP/N 2545P**V*AL
Options-
Other InformatonMates with 2540S
Product2545P
Circuits10,12,14,16,20,24,26,30,34,40,50,60,64 circuits
MaterialThermoplastic UL94V-0/Brass
Material Options-
Color Options-
FormulaP/N 2545P**V*AS
Options-
Other InformatonMates with 2540S
Product2545P
Circuits10.12.14.16.20.24.26.30.34.40.50.60.64 circuits
MaterialThermoplastic UL94V-0/Brass
Material Options-
Color Options-
FormulaP/N 2545P**H*AL
Options-
Other InformatonMates with 2540S
Product2545P
Circuits10.12.14.16.20.24.26.30.34.40.50.60.64 circuits
MaterialThermoplastic UL94V-0/Brass
Material Options-
Color Options-

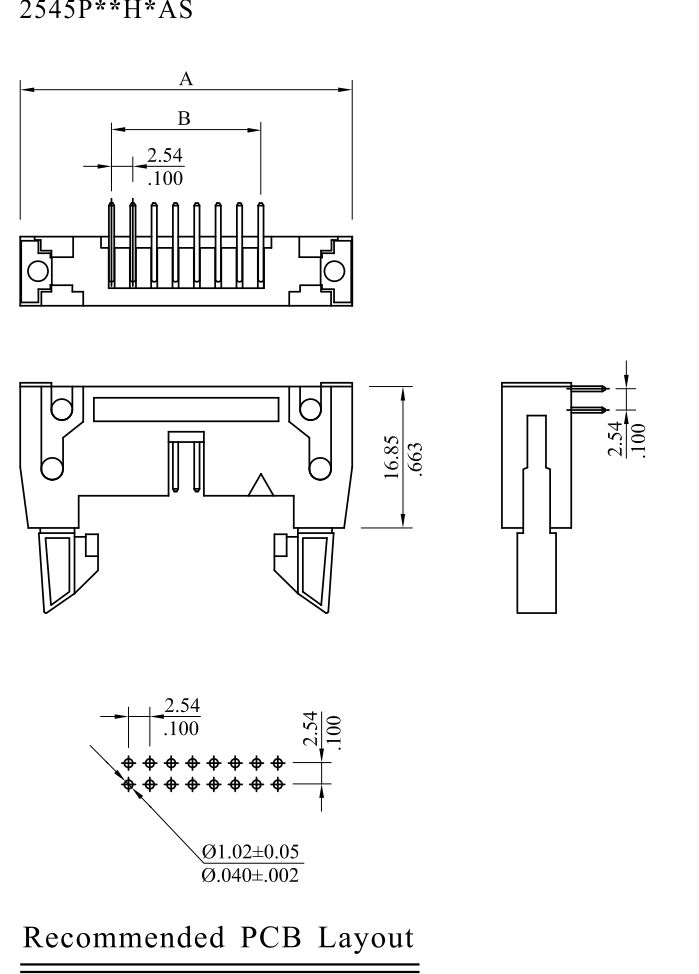

FormulaP/N 2545P**H*AS
Options-
Other InformatonMates with 2540S
