2.00mm (.079″) Board to Board Connector

2.00mm (.079″) Board to Board Connector

Specification

Measurement 2.00mm (.079")
Circuits 2~80 circuits
Current Rating 2A AC DC
Voltage Rating 250V AC DC
Temperature rating: -40℃~+105℃
Contact resistance 20mΩ max.
Insulation resistance 1000MΩ min.
Withstanding voltage 500V AC/min.

Standards

Product Details

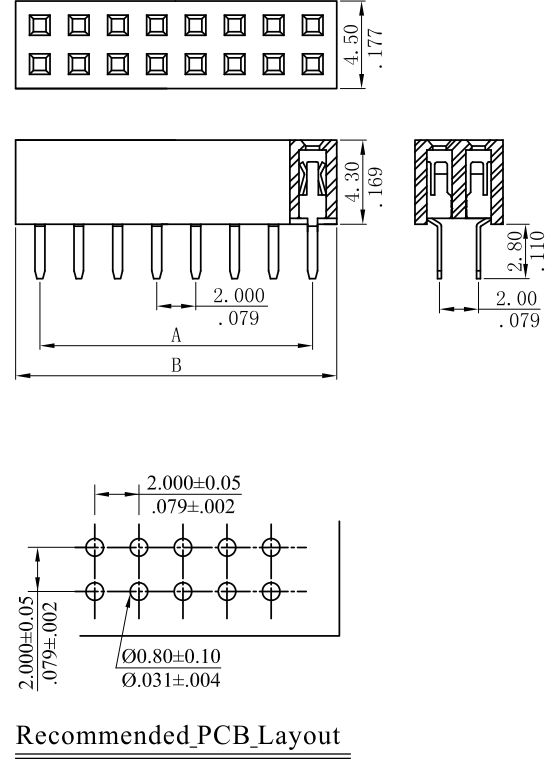

  • 2042 Series 2.00mm (.097") Dual Row PCB Socket
Product 2042S
Circuits 2~80 circuits
Material Nylon 6T UL94V-0/Phosphor Bronze
Material Options -
Color Options -
Formula P/N 2042S**V*00
Options -
Other Informaton Mates with 2.00*2.00mm(.079"*.079")Pin Header
