2.00mm (.079″) Board to Board Connector

//2.00mm (.079″) Board to Board Connector

2.00mm (.079″) Board to Board Connector

Specification

Measurement2.00mm (.079")
Circuits2~80 circuits
Current Rating2A AC DC
Voltage Rating250V AC DC
Temperature rating:-40℃~+105℃
Contact resistance20mΩ max.
Insulation resistance1000MΩ min.
Withstanding voltage1000V AC/min.

Standards

Product Details

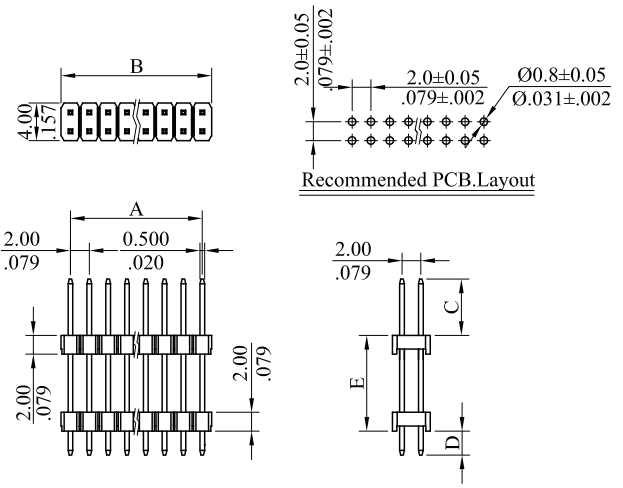

  • 2007 Series 2.00mm (.097") Dual Row Breakaway Header
Product2007P
Circuits2~80 circuits
MaterialNylon 6T UL94V-0
Material Options-
Color Options-
FormulaP/N 2007P***L**
Options-
Other InformatonMates with 2.00mm*00mm(.079"*.079")socket
